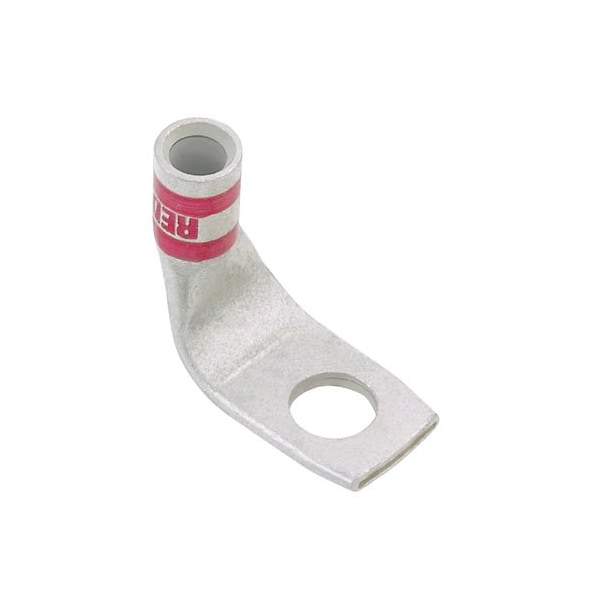

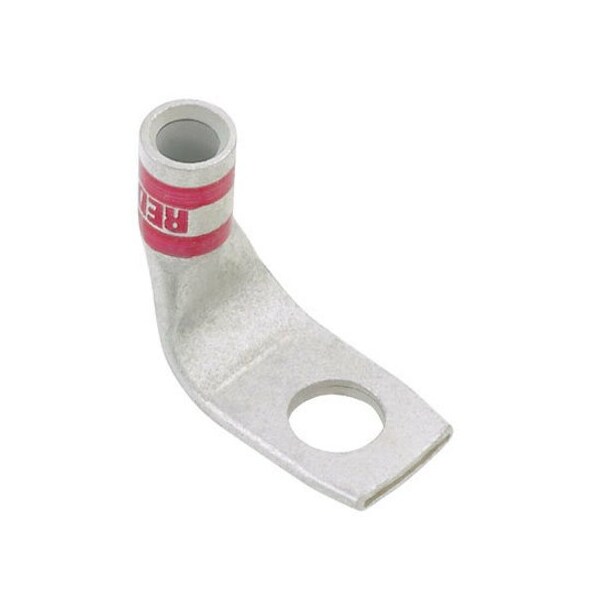

Terminal de compresión de cobre, 1 agujero, 300 kcmi.
| Length | 6.8 in |
|---|---|
| Color Code | Red |
| Overall Length | 2.37 in |
| Features | Corrosion Resistant, 90° Angled Connector |
| Maximum Voltage (kV) | 35 |
| Class I Copper Flex Conductor Size (kcmil) | 300 |
| Class H Copper Flex Conductor Size (kcmil) | 300 |
| Tongue Thickness (In.) | 0.18 |
| Product Type | Copper Compression Connectors - Lugs |
| Class M Copper Flex Conductor Size (kcmil) | 300 |
| Overall Length (In.) | 2.37 |
| Stud Hole Size (In.) | 44,993 |
| Barrel Length (mm) | 30.2 |
| UL Temperature Rating (°C) | 90 |
| Tongue Type | Standard |
| Class G Copper Flex Conductor Size (kcmil) | 300 |
| Overall Length (mm) | 60.2 |
| Burndy Die Index Number | 18 |
| Wire Strip Length (mm) | 31.8 |
| Tongue Angle | 90° |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness (mm) | 4.6 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (In.) | 1.39 |
| Class K Copper Flex Conductor Size (kcmil) | 300 |
| Panduit Die Index Number | P71 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 35.3 |
| Wire Strip Length (In.) | 1.25 |
| Barrel Length (In.) | 1.19 |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
