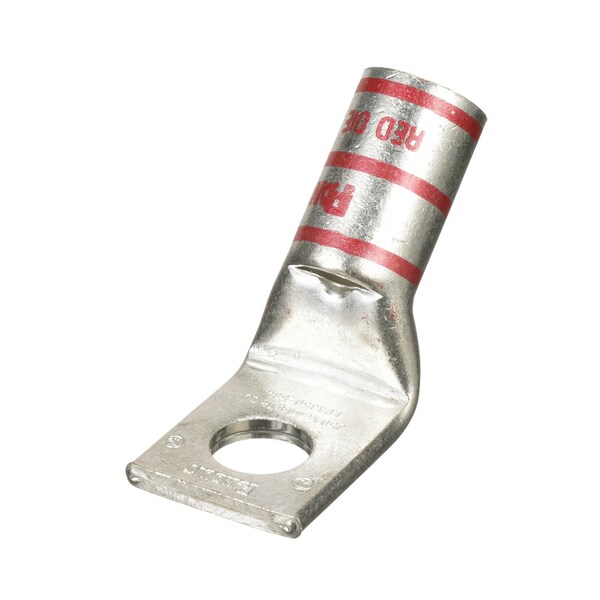

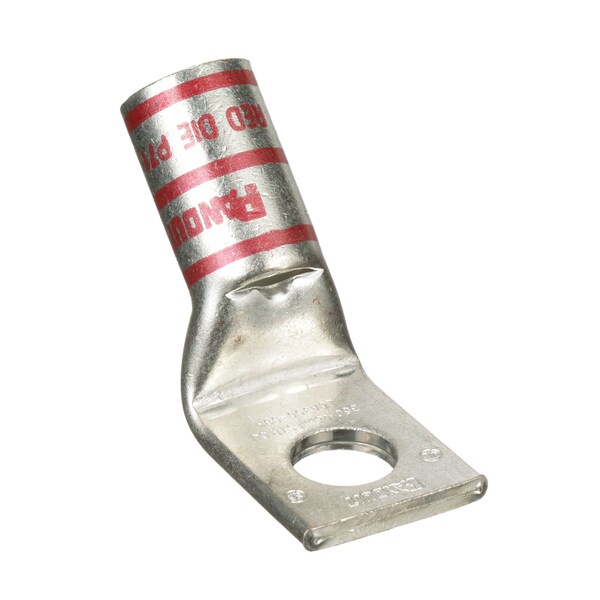

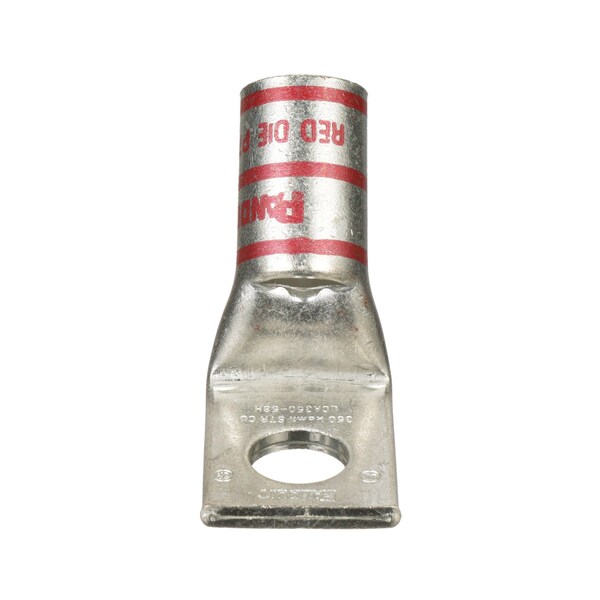

Terminal de compresión de cobre, 1 agujero, 350 kcmil.
| Length | 3.8 in |
|---|---|
| Color Code | Red |
| Overall Length | 2.91 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Overall Length (In.) | 2.91 |
| Panduit Die Index Number | P71 |
| Tongue Thickness (In.) | 0.17 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 15.9 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 1.5 |
| Barrel Length (In.) | 1.44 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 38.1 |
| Tongue Thickness (mm) | 4.3 |
| Tongue Width (mm) | 32.5 |
| Overall Length (mm) | 73.9 |
| Barrel Length (mm) | 36.6 |
| Burndy Die Index Number | 18 |
| Copper Code Conductor Size (kcmil) | 350 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Tongue Angle | 45° |
| Base Material | Copper |
| Stud Hole Size (In.) | 45,054 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Width (In.) | 1.28 |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
