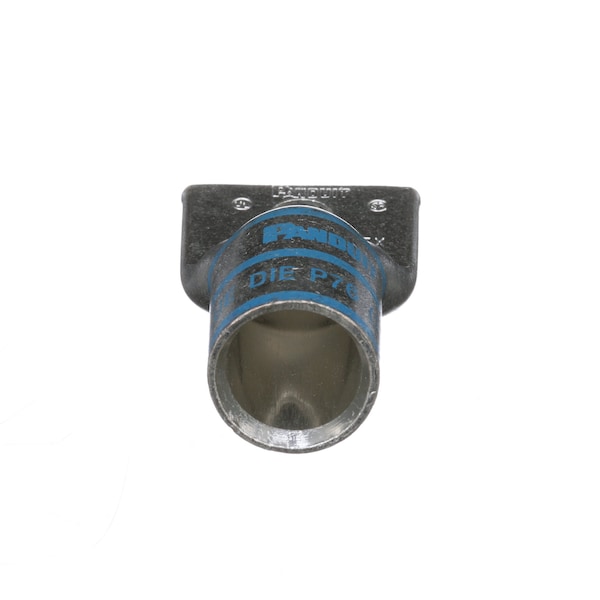

Terminal de compresión de cobre, 1 hoyo, 350 Kcmi
| Material | Copper |
|---|---|
| Color Code | Blue |
| Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
| Overall Length | 2.93 in |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Outside Dia. | 1.06 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 32.8 |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| UL Temperature Rating (°C) | 90 |
| T & B Die Index Number | 19 |
| Wire Strip Length (mm) | 34.9 |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| Overall Length (In.) | 2.93 |
| Tongue Type | Standard |
| Stud Hole Size (mm) | 9.5 |
| Overall Length (mm) | 74.4 |
| Barrel Length (In.) | 1.29 |
| Outer Diameter (mm) | 26.92 |
| Wire Strip Length (In.) | 39,450 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Tongue Thickness (In.) | 0.22 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Inside Diameter (mm) | 21.33 |
| Outer Diameter (In.) | 1.06 |
| Lug Type | 1 Stud Hole Lug |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 44,993 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Product Type | Copper Compression Connectors - Lugs |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Tongue Width (mm) | 39.1 |
| Tongue Width (In.) | 1.54 |
| Inside Diameter (In.) | 0.84 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (mm) | 5.6 |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
