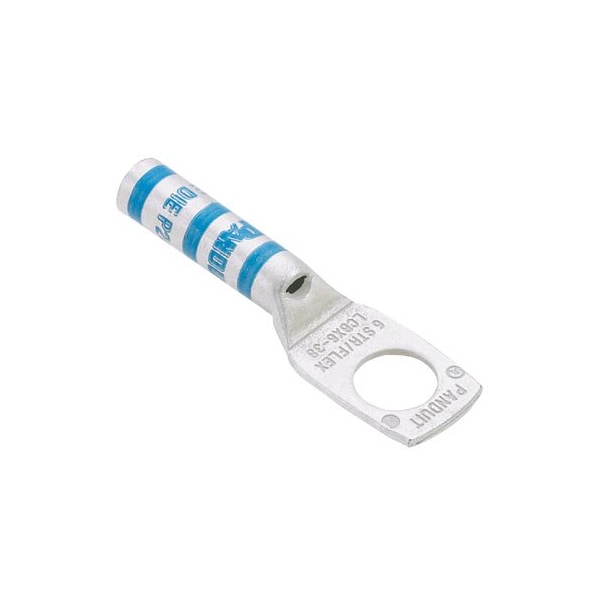

Conector de compresión de cobre, 1 agujero, 350 Kcmil.
| Material | Copper |
|---|---|
| Color Code | Blue |
| Barrel Length | 2.5 |
| Hole Center to Center | 44563 |
| Tongue Style | Standard |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Overall Length | 4.3 in |
| Overall Length (In.) | 4.3 |
| Stud Hole Size (In.) | 1 to 2 |
| Product Type | Copper Compression Connectors - Lugs |
| Class H Copper Flex Conductor Size (kcmil) | 350 |
| Class M Copper Flex Conductor Size (kcmil) | 350 |
| Class K Copper Flex Conductor Size (kcmil) | 350 |
| Stud Hole Size (mm) | 12.7 |
| Wire Strip Length (mm) | 65 |
| Tongue Angle | Straight |
| Panduit Die Index Number | P76 |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Barrel Length (mm) | 63.5 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Tongue Thickness (mm) | 5.6 |
| Tongue Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (kcmil) | 350 |
| DLO Copper Flex Conductor Size (kcmil) | 373.7 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Overall Length (mm) | 109.2 |
| Finish/Coating | Tin-Plated |
| Burndy Die Index Number | 19 |
| Tongue Thickness (In.) | 0.22 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 2-1/2 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
