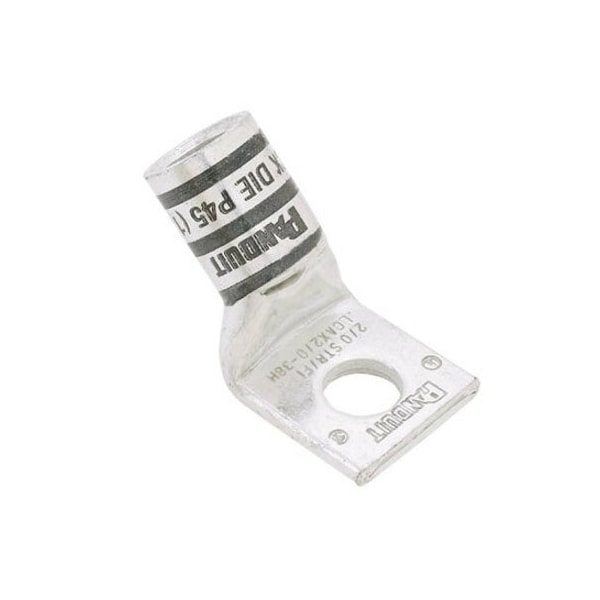

Terminal de compresión de cobre, 1 agujero, calibre 4 AWG F
| Length | 2.2 in |
|---|---|
| Color Code | Gray |
| Overall Length | 1.12 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Barrel Length (mm) | 13.5 |
| Class H Copper Flex Conductor Size (AWG) | 4 |
| Stud Hole Size (In.) | 0.19 |
| Overall Length (mm) | 28.5 |
| Burndy Die Index Number | 8 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 0.53 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 4.8 |
| Class K Copper Flex Conductor Size (AWG) | 4 |
| Overall Length (In.) | 1.12 |
| Class G Copper Flex Conductor Size (AWG) | 4 |
| Tongue Width (In.) | 0.55 |
| Tongue Thickness (mm) | 2.3 |
| Tongue Width (mm) | 14 |
| Class M Copper Flex Conductor Size (AWG) | 4 |
| Base Material | Copper |
| Panduit Die Index Number | P29 |
| Maximum Voltage (kV) | 35 |
| Product Type | Copper Compression Connectors - Lugs |
| DLO Copper Flex Conductor Size (AWG) | 4 |
| Wire Strip Length (mm) | 15.8 |
| Copper Code Conductor Size (AWG) | 4 |
| Class I Copper Flex Conductor Size (AWG) | 4 |
| Tongue Angle | 45° |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.09 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
