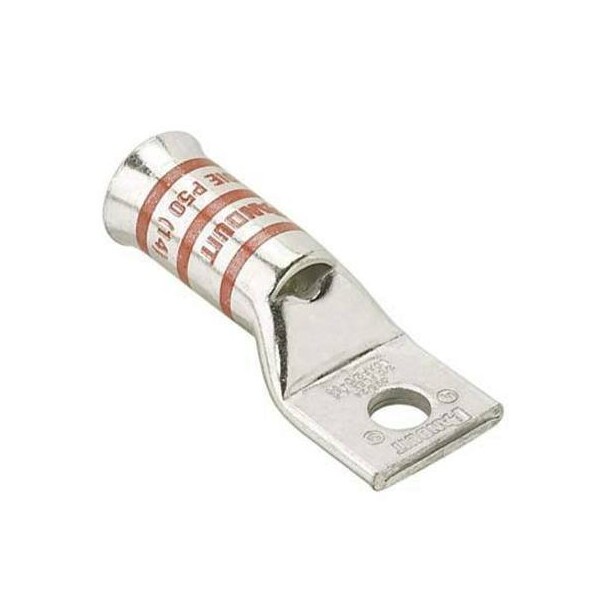

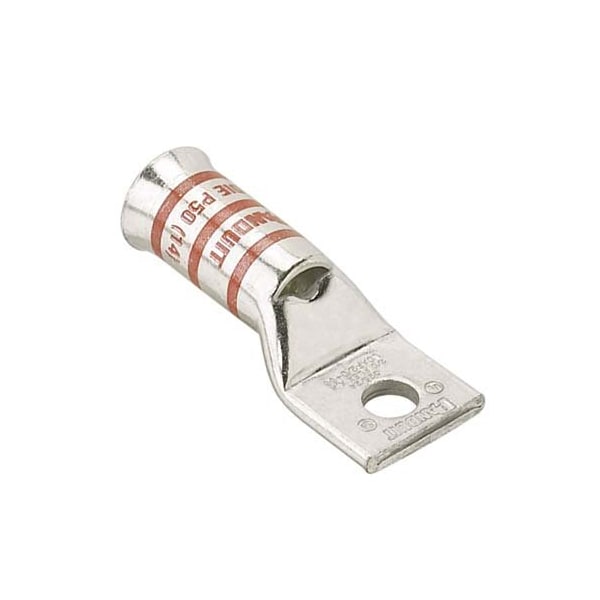

Terminal de compresión de cobre, 1 orificio, 4/0 AWG, barril acampanado, LCAF4/0-56-X.
| Length | 5 in |
|---|---|
| Color Code | Yellow |
| Overall Length | 2.58 in |
| Features | Angled Connector, Corrosion Resistant |
| Barrel Length (In.) | 1.35 |
| Wire Strip Length (mm) | 36.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Base Material | Copper |
| Tongue Thickness (mm) | 3.6 |
| Barrel Length (mm) | 34.3 |
| Tongue Width (In.) | 1.17 |
| Maximum Voltage (kV) | 35 |
| Panduit Die Index Number | P62 |
| Finish/Coating | Tin-Plated |
| Class K Copper Flex Conductor Size (AWG) | 36,617 |
| DLO Copper Flex Conductor Size (AWG) | 36,617 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Type | Standard |
| Class M Copper Flex Conductor Size (AWG) | 36,617 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 7.9 |
| Overall Length (mm) | 65.5 |
| Stud Hole Size (In.) | 45,062 |
| Overall Length (In.) | 2.58 |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (mm) | 29.7 |
| Tongue Angle | Straight |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Lugs, Splices, Mechanical |
| Package Quantity | 1 |
