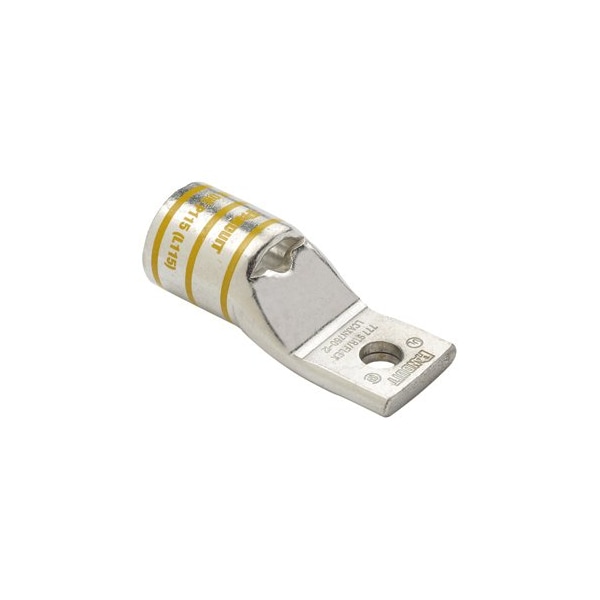

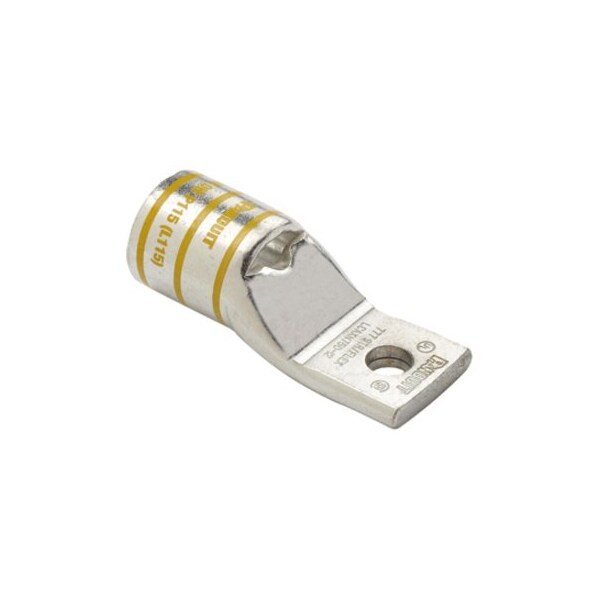

Terminal de compresión de cobre, 1 orificio, calibre 4/0 AWG.
| Length | 4-1/2 in |
|---|---|
| Overall Length | 2.55 in |
| Features | Corrosion Resistant, Angled Connector |
| Copper Conductor Size (kcmil) | 212 |
| Stud Hole Size (In.) | 45,062 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (mm) | 20.6 |
| Overall Length (In.) | 2.55 |
| Overall Length (mm) | 64.8 |
| Barrel Length (In.) | 1.03 |
| Tongue Thickness (mm) | 5.1 |
| Wire Strip Length (In.) | 10,625 |
| Stud Hole Size (mm) | 7.9 |
| Barrel Length (mm) | 26.2 |
| Tongue Thickness (In.) | 0.2 |
| Tongue Angle | Straight |
| Wire Strip Length (mm) | 75 |
| Tongue Width (In.) | 0.81 |
| Copper Conductor Size (AWG) | 36,617 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
