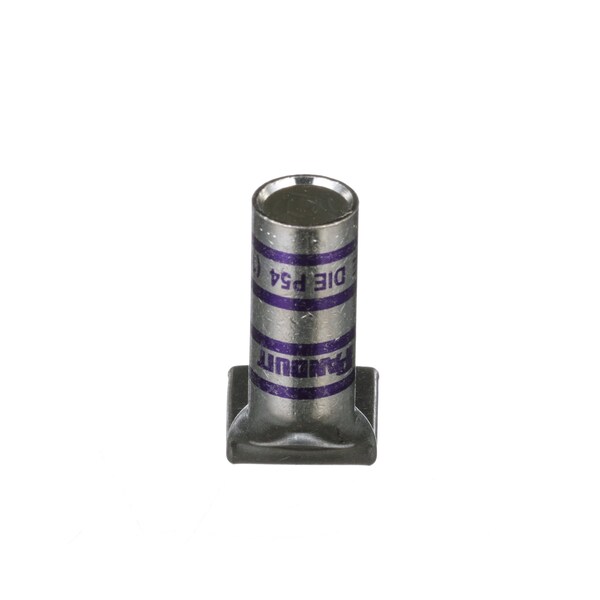

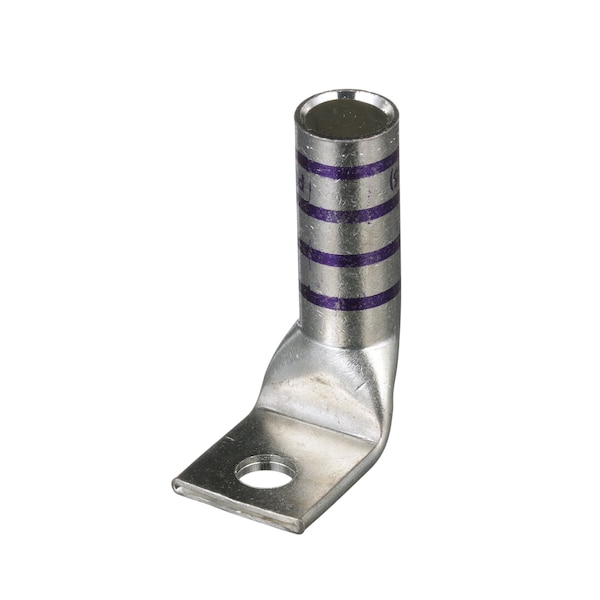

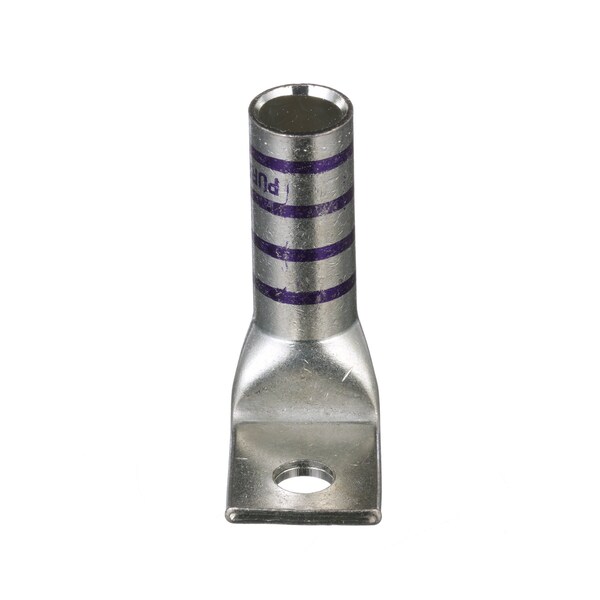

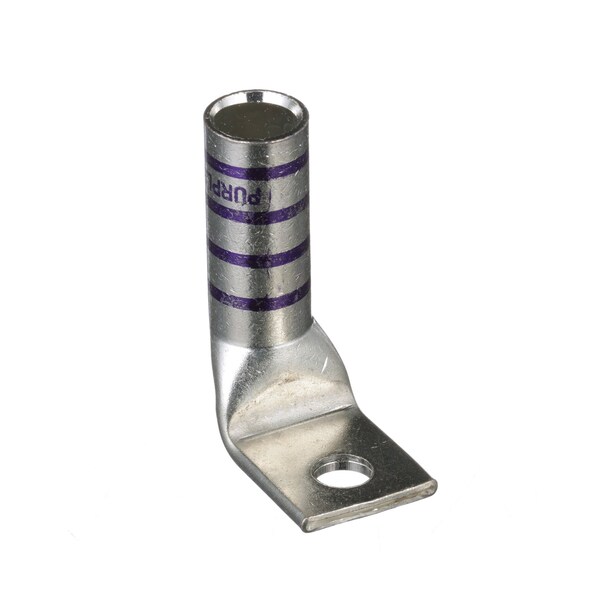

Terminal de compresión de cobre, 1 hueco, calibre 4/0 AWG.
| Length | 3-1/2 in |
|---|---|
| Color Code | Purple |
| Overall Length | 1.88 in |
| Features | Corrosion Resistant, 90° Angled Connector |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Overall Length (In.) | 1.88 |
| Base Material | Copper |
| Barrel Length (In.) | 1.56 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Width (In.) | 1.06 |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (mm) | 3.6 |
| Product Type | Copper Compression Connectors - Lugs |
| Burndy Die Index Number | 15 |
| Wire Strip Length (mm) | 41.3 |
| Stud Hole Size (In.) | 42.95 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Overall Length (mm) | 63 |
| Barrel Length (mm) | 39.6 |
| Panduit Die Index Number | P54 |
| Tongue Angle | 90° |
| Tongue Type | Standard |
| Copper Code Conductor Size (AWG) | 36,617 |
| Tongue Width (mm) | 26.9 |
| Stud Hole Size (mm) | 9.5 |
| Wire Strip Length (In.) | 1.63 |
| Finish/Coating | Tin-Plated |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
