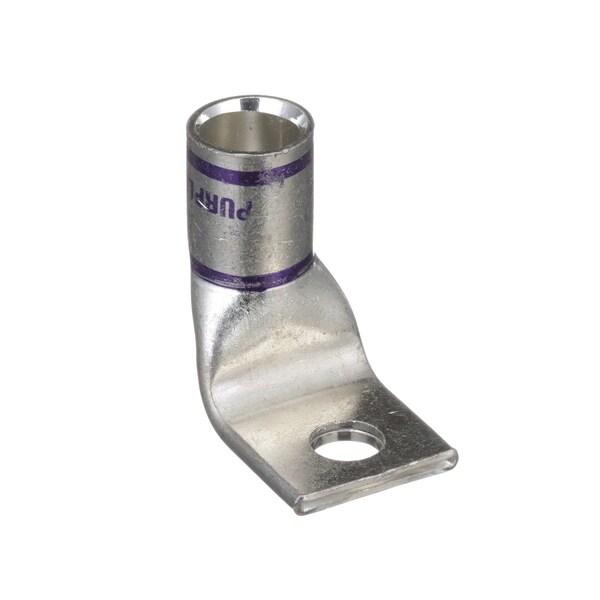

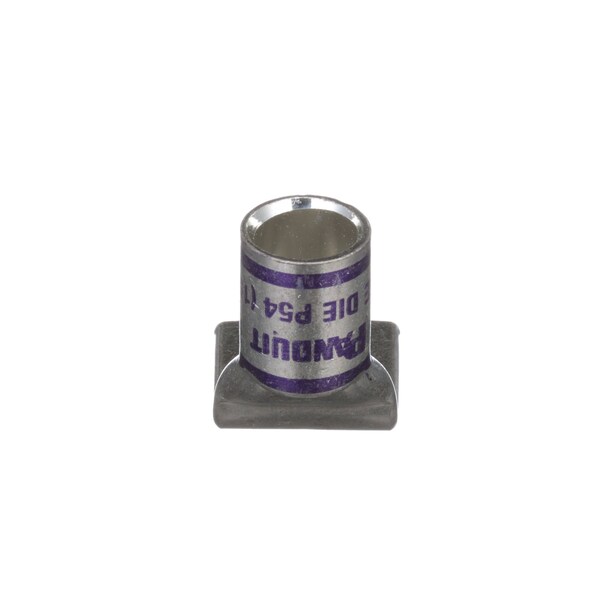

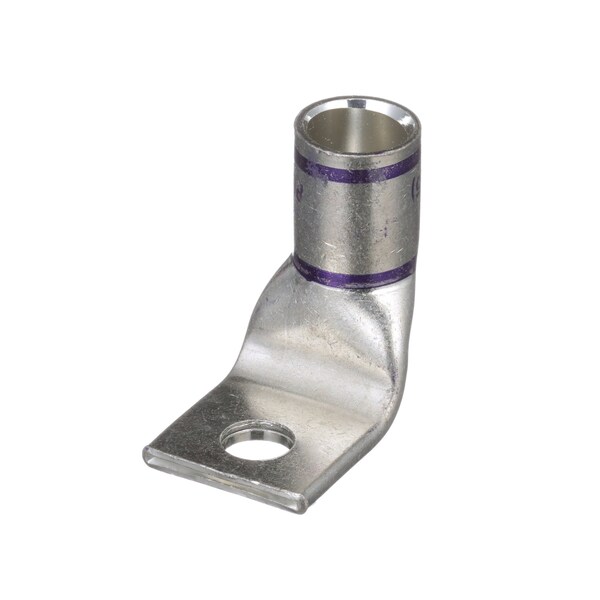

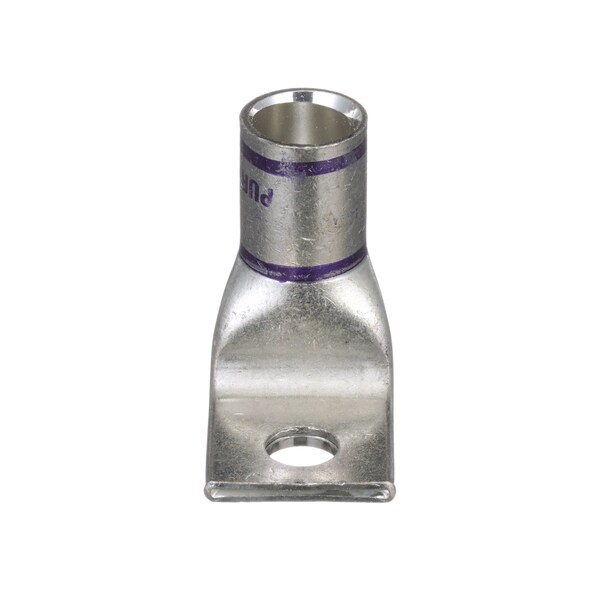

Terminal de compresión de cobre, 1 orificio, 4/0 AWG, barril corto, LCAS4/0-38F-X
| Material | Tin-Plated Copper |
|---|---|
| Length | 1.6 in |
| Overall Length | 1.84 in |
| Features | 90° Angled Connector |
| Stud Hole Size In. (mm) | 0.375 |
| Tongue Thickness (mm) | 3.6 |
| Barrel Length (In.) | 0.91 |
| Barrel Style | Standard |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness In. (mm) | 0.14 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness | 0.14 |
| Barrel Type | Short Barrel Length with Inspection Window |
| Conductor Material | Copper |
| T&B Die Index No. | 54 |
| Angle | 90° |
| Conductor Size | 4/0 AWG Code |
| UL and CSA Temperature Rating | 90° |
| CSA Certified | C22.2 No. 65-13 |
| Length In (mm) | 1.84 |
| Tongue Type | Standard |
| Wire Strip Length In. (mm) | 1 |
| Stud Hole Size (In.) | 44,993 |
| Wire Strip Length (mm) | 25.4 |
| Tongue Angle | 90° |
| Panduit Color Code | Purple |
| Length (In.) | 1.84 |
| Tongue Width (In.) | 1.06 |
| Copper Conductor Size | 4/0 AWG |
| Clearance | 0.47 |
| Suggested Index Terms | copper compression lug, 1hole, short barrel,90° |
| UL and CSA Voltage Rating | 35kV |
| Barrel Length In. (mm) | 0.91 |
| Wire Strip Length (In.) | 1 |
| Tongue Width In. (mm) | 1.06 |
| Tin-Plating Meets ASTM B545-97, Class C | 320µ in (8µ m) |
| Tested by Telcordia-Meets NEBS Level 3 | Yes |
| Barrel Length (mm) | 23.1 |
| Burndy Die Index No. | 15 |
| Length (mm) | 46.7 |
| Code Conductor Size | 4/0 AWG Code |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Type | Terminal Connector |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
