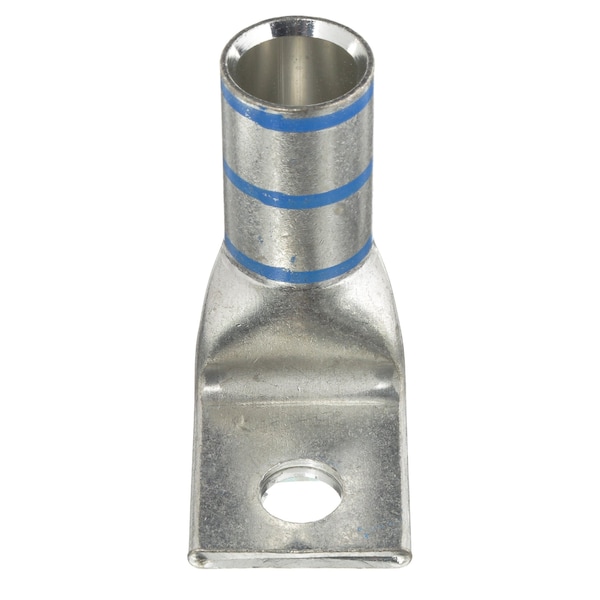

Manguito de compresión de cobre, 1 agujero, 45 grados de inclinación, 00 Kcmi.
| Material | Copper |
|---|---|
| Color Code | Blue |
| Barrel Length | 1.5 |
| Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Style | Standard |
| Hole Center to Center | 44563 |
| Overall Length | 2.37 in |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Tongue Width - Wire Connector | 1.39 |
| Copper Code Conductor Size (kcmil) | 400 |
| Stud Hole Size (mm) | 12.7 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 1.56 |
| Overall Length (In.) | 2.37 |
| Tongue Thickness (mm) | 4.6 |
| Barrel Length (In.) | 1-1/2 |
| Finish/Coating | Tin-Plated |
| Product Type | Copper Compression Connectors - Lugs |
| Burndy Die Index Number | 19 |
| Base Material | Copper |
| Tongue Width (mm) | 35.3 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Angle | 90° |
| Wire Strip Length (mm) | 39.7 |
| Panduit Die Index Number | P76 |
| Stud Hole Size (In.) | 1 to 2 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Width (In.) | 1.39 |
| Overall Length (mm) | 60.2 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
