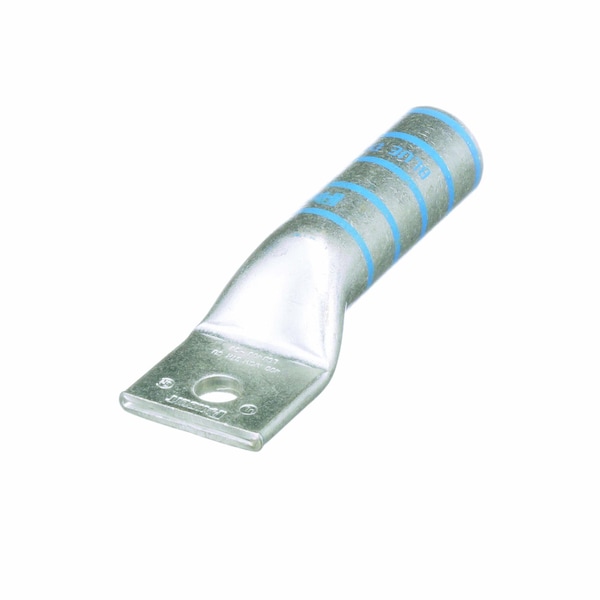

Terminal de compresión de cobre, con 1 agujero y curvatura de 45 grados, para cable de 00 Kcmi.
| Material | Copper |
|---|---|
| Color Code | Blue |
| Wire Gauge | 35 |
| Tongue Style | Standard |
| Hole Center to Center | 44628 |
| Tongue Width - Wire Connector | 1.39 |
| Overall Length | 4.27 in |
| Standards | C22.2 No. 65-13, 486A-486B File #E52164 |
| Barrel Length | 2.3 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Overall Length (In.) | 4.27 |
| Tongue Width (In.) | 1.39 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 9.5 |
| Wire Strip Length (In.) | 2.38 |
| Tongue Type | Standard |
| Stud Hole Size (In.) | 44,993 |
| Wire Strip Length (mm) | 60.3 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (mm) | 108.5 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Burndy Die Index Number | 19 |
| Barrel Length (mm) | 58.4 |
| Maximum Wire Size (AWG) | 35 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Panduit Die Index Number | P76 |
| UL Temperature Rating (°C) | 90 |
| Copper Code Conductor Size (kcmil) | 400 |
| Tongue Angle | Straight |
| Barrel Length (In.) | 2.3 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.18 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (mm) | 35.3 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
