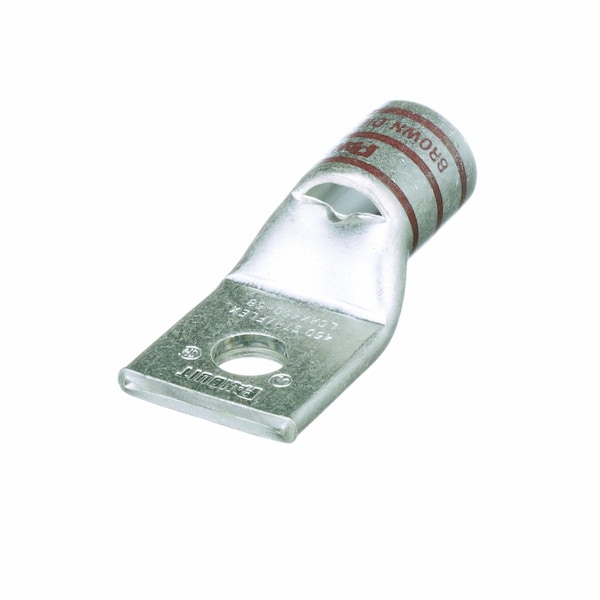

Terminal de compresión de cobre, 1 agujero, 450 kcmi
| Length | 3.7 in |
|---|---|
| Color Code | Brown |
| Overall Length | 3.73 in |
| Features | Corrosion Resistant, Angled Connector |
| Tongue Angle | Straight |
| Panduit Die Index Number | P87 |
| Tongue Thickness (In.) | 0.26 |
| Product Type | Copper Compression Connectors - Lugs |
| Class G Copper Flex Conductor Size (kcmil) | 450 |
| Barrel Length (In.) | 1.4 |
| Class H Copper Flex Conductor Size (kcmil) | 450 |
| Tongue Width (In.) | 1.7 |
| Stud Hole Size (mm) | 15.9 |
| Overall Length (In.) | 3.73 |
| Finish/Coating | Tin-Plated |
| Tongue Type | Standard |
| Base Material | Copper |
| Tongue Width (mm) | 43.2 |
| Overall Length (mm) | 94.7 |
| Maximum Voltage (kV) | 35 |
| Class K Copper Flex Conductor Size (kcmil) | 450 |
| Burndy Die Index Number | 20 |
| Class I Copper Flex Conductor Size (kcmil) | 450 |
| Wire Strip Length (mm) | 36.5 |
| Class M Copper Flex Conductor Size (kcmil) | 450 |
| UL Temperature Rating (°C) | 90 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 35.6 |
| Stud Hole Size (In.) | 45,054 |
| Tongue Thickness (mm) | 6.6 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
