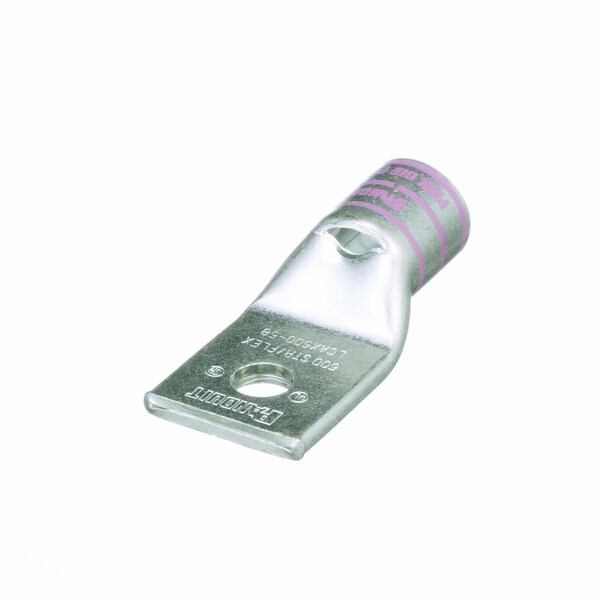

Ojal de compresión de cobre, 1 hueco, 500 kcmil.
| Length | 4.2 in |
|---|---|
| Color Code | Pink |
| Overall Length | 4.2 in |
| Features | Angled Connector, Corrosion Resistant |
| Tongue Type | Standard |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (mm) | 6.6 |
| Panduit Die Index Number | P99 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Stud Hole Size (mm) | 15.9 |
| Burndy Die Index Number | L99 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 1.48 |
| Stud Hole Size (In.) | 45,054 |
| Base Material | Copper |
| Overall Length (In.) | 4.2 |
| Tongue Width (mm) | 48 |
| Wire Strip Length (mm) | 39.7 |
| Barrel Length (mm) | 37.6 |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (mm) | 106.7 |
| Tongue Width (In.) | 1.89 |
| Tongue Thickness (In.) | 0.26 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
