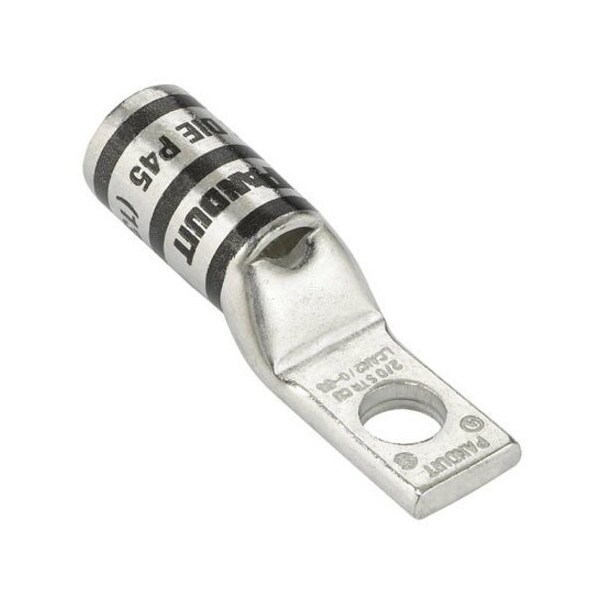

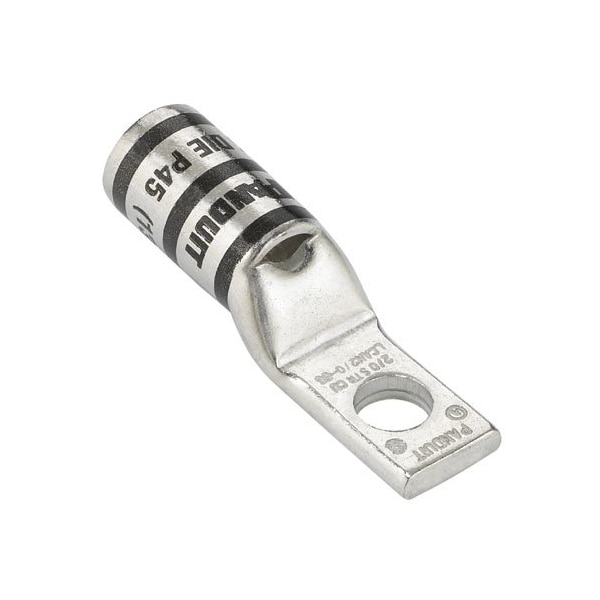

Terminal de compresión de cobre, 1 orificio, 600 kcmil.
| Length | 4.8 in |
|---|---|
| Color Code | Green |
| Overall Length | 4.22 in |
| Features | Corrosion Resistant, Angled Connector |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (mm) | 106.7 |
| Base Material | Copper |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Angle | Straight |
| Barrel Length (mm) | 44.5 |
| Stud Hole Size (mm) | 12.7 |
| Panduit Die Index Number | P94 |
| Tongue Thickness (mm) | 6.9 |
| Copper Code Conductor Size (kcmil) | 600 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (In.) | 0.33 |
| Burndy Die Index Number | 22 |
| Barrel Length (In.) | 1-3/4 |
| Tongue Width (mm) | 30.2 |
| Tongue Width (In.) | 1.19 |
| Tongue Type | Narrow |
| Wire Strip Length (In.) | 1.81 |
| UL Temperature Rating (°C) | 90 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Length (In.) | 4.22 |
| Wire Strip Length (mm) | 46 |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
