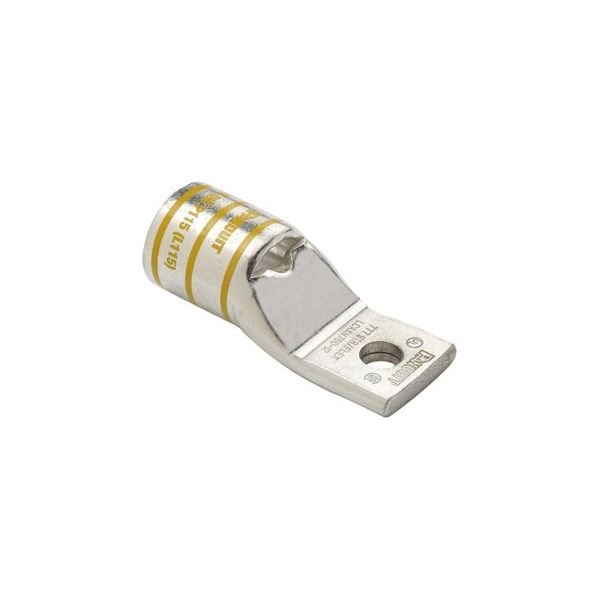

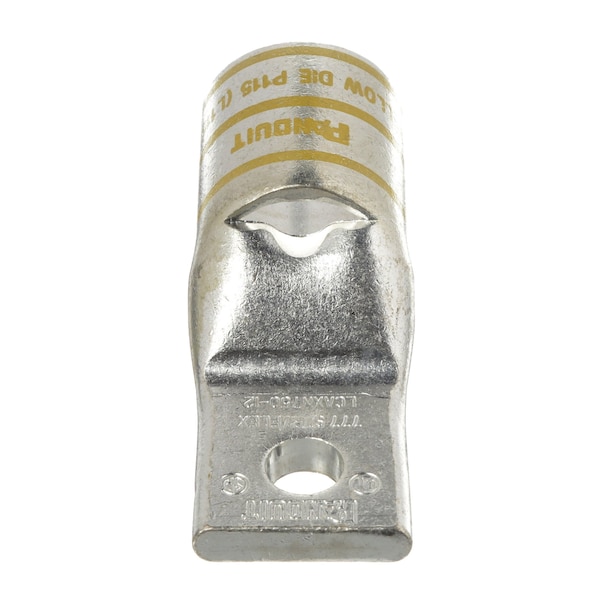

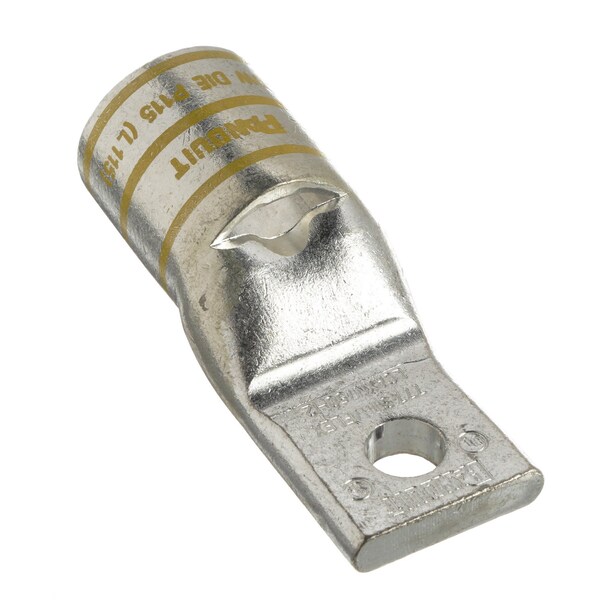

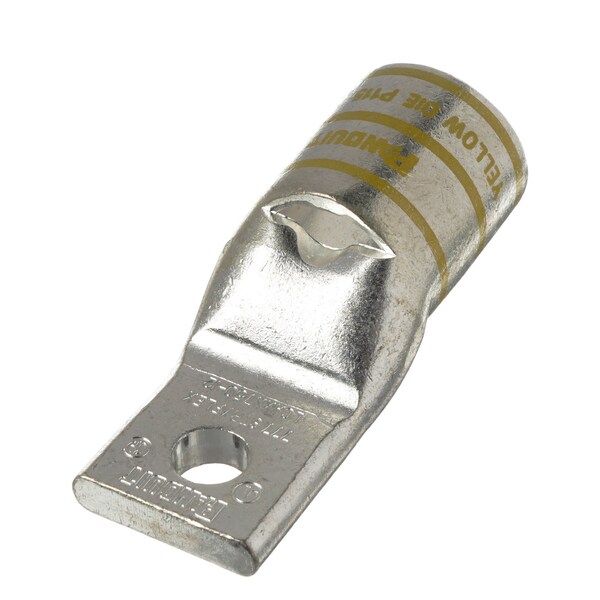

Terminal de compresión de cobre, con 1 orificio, de 750 kcmi.
| Length | 4.9 in |
|---|---|
| Overall Length | 3.94 in |
| Features | Corrosion Resistant, Angled Connector |
| Barrel Length (mm) | 42.2 |
| Wire Strip Length (In.) | 1.75 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 12.7 |
| Barrel Length (In.) | 1.66 |
| Tongue Width (mm) | 38.1 |
| Wire Strip Length (mm) | 44.5 |
| Tongue Thickness (In.) | 0.33 |
| Overall Length (In.) | 3.94 |
| Tongue Width (In.) | 1-1/2 |
| Overall Length (mm) | 100.1 |
| Tongue Angle | Straight |
| Tongue Thickness (mm) | 8.4 |
| Stud Hole Size (In.) | 1 to 2 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
