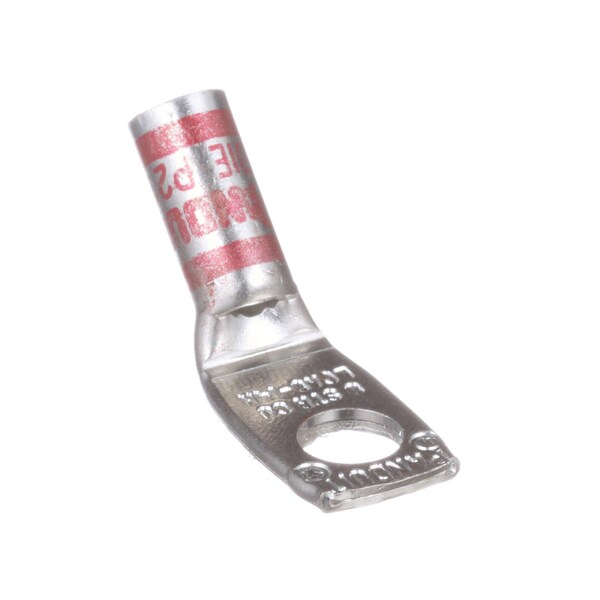

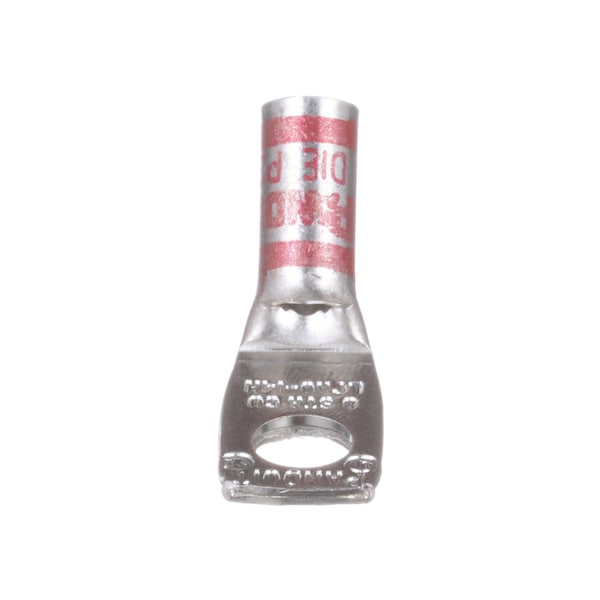

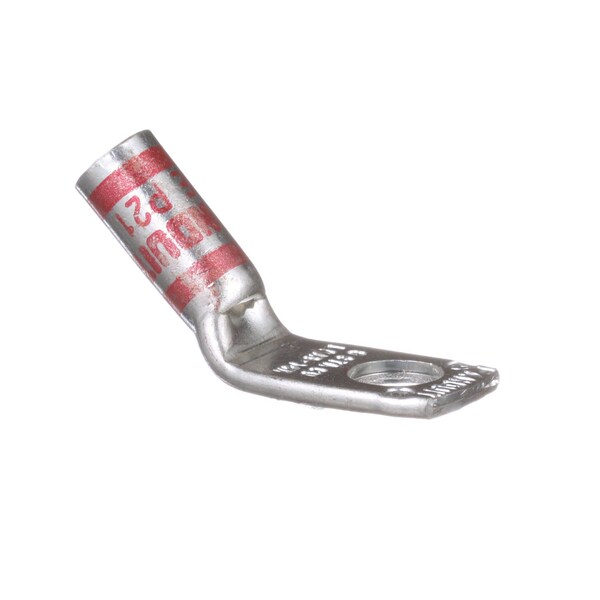

Terminal de compresión de cobre, 1 orificio, calibre #8, perno de 1/4 de pulgada (6.4mm), LCA8-14H-L.
| Length | 2.2 in |
|---|---|
| Color Code | Red |
| Overall Length | 1.19 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Panduit Die Index Number | P21 |
| Barrel Length (In.) | 0.56 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Stud Hole Size (In.) | 44,930 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Length (mm) | 14.2 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Copper Code Conductor Size (AWG) | 8 |
| Base Material | Copper |
| Overall Length (mm) | 30.2 |
| Tongue Angle | 45° |
| Wire Strip Length (mm) | 15.9 |
| Product Type | Copper Compression Connectors - Lugs |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Burndy Die Index Number | 49 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Overall Length (In.) | 1.19 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
