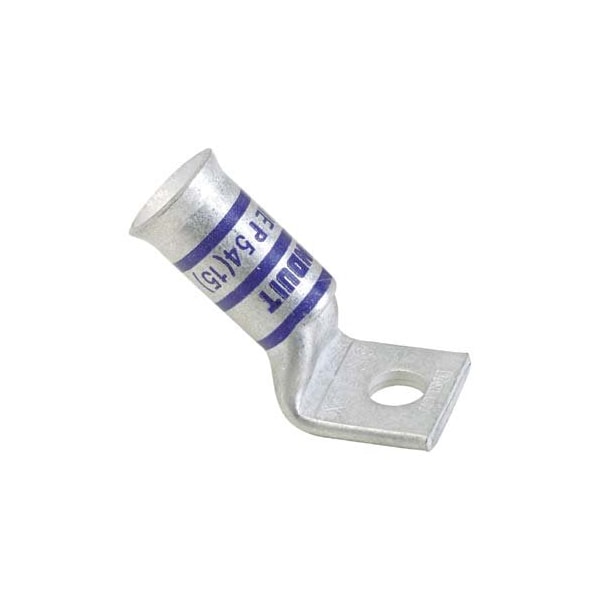

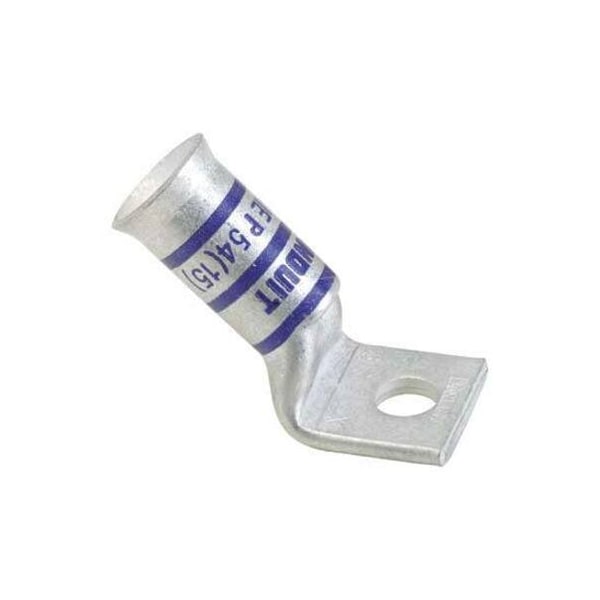

Terminal de compresión de cobre, 1 agujero, calibre #8, barril estriado.
| Length | 2.9 in |
|---|---|
| Overall Length | 1.26 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Overall Length (In.) | 1.26 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | 45° |
| Tongue Width (mm) | 10.4 |
| Wire Strip Length (In.) | 0.8125 |
| Wire Strip Length (mm) | 20.6 |
| Barrel Length (mm) | 19.3 |
| Tongue Thickness (In.) | 0.08 |
| Overall Length (mm) | 32 |
| Stud Hole Size (mm) | 4.8 |
| Tongue Thickness (mm) | 2 |
| Tongue Width (In.) | 0.41 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (In.) | 0.76 |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
