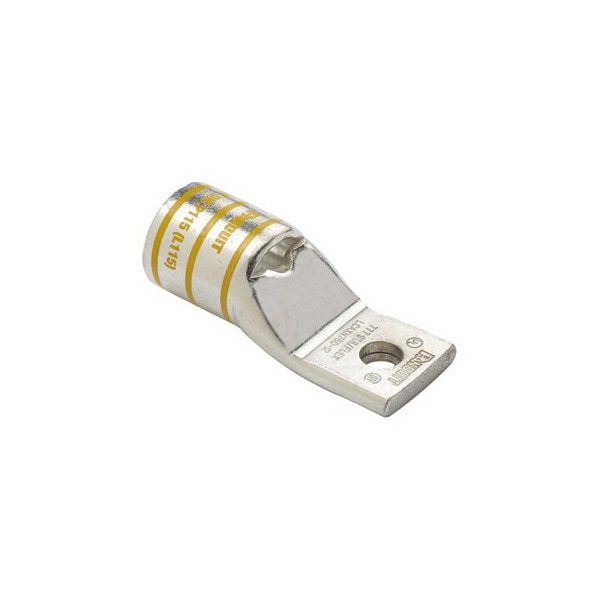

Terminal de compresión de cobre, 1 orificio, flexible, calibre 1/0 AWG, angosta, LCAXN1/0-38-X.
| Overall Length | 2.17 in |
|---|---|
| Features | Angled Connector |
| Tongue Angle | Straight |
| Wire Strip Length (mm) | 26.9 |
| Tongue Thickness (mm) | 3.8 |
| Tongue Width (mm) | 14.7 |
| Overall Length (In.) | 2.17 |
| Barrel Length (mm) | 24.8 |
| Overall Length (mm) | 55.1 |
| Stud Hole Size (In.) | 44,993 |
| Wire Strip Length (In.) | 1.06 |
| Tongue Width (In.) | 0.58 |
| Tongue Thickness (In.) | 0.15 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 9.525 |
| Barrel Length (In.) | 0.98 |
| Product Material | Copper |
| Connector Details | 1 x Barrel Plug |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
