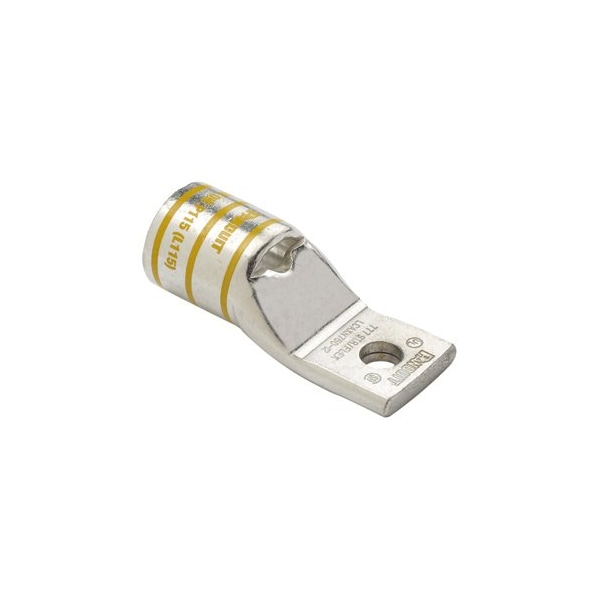

Terminal de compresión de cobre, 1 agujero, flex, calibre 2/0 AWG, angosto, LCAXN2/0-56-X.
| Overall Length | 2.3 in |
|---|---|
| Features | Angled Connector |
| Stud Hole Size (In.) | 45,062 |
| Overall Length (In.) | 2.3 |
| Tongue Width (In.) | 0.64 |
| Wire Strip Length (In.) | 1.18 |
| Tongue Thickness (In.) | 0.16 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 7.9375 |
| Barrel Length (In.) | 1.14 |
| Tongue Thickness (mm) | 4 |
| Overall Length (mm) | 58.4 |
| Barrel Length (mm) | 28.9 |
| Wire Strip Length (mm) | 30.1 |
| Tongue Angle | Straight |
| Tongue Width (mm) | 16.2 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Barrel Plug |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
