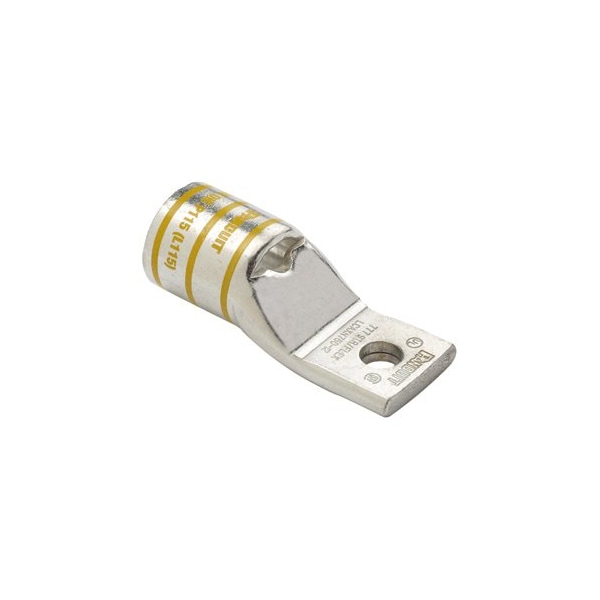

Terminal de compresión de cobre, de 1 agujero, flexible, calibre 3/0 AWG, estrecho, LCAXN3/0-14-X.
| Overall Length | 2.38 in |
|---|---|
| Features | Angled Connector |
| Wire Strip Length (In.) | 1.25 |
| Stud Hole Size (mm) | 6.35 |
| Barrel Length (In.) | 1.19 |
| Overall Length (mm) | 60.4 |
| Tongue Width (In.) | 0.71 |
| Tongue Thickness (In.) | 0.18 |
| Barrel Length (mm) | 30.2 |
| Tongue Thickness (mm) | 4.5 |
| Tongue Angle | Straight |
| Wire Strip Length (mm) | 31.7 |
| Tongue Width (mm) | 18 |
| Overall Length (In.) | 2.38 |
| Stud Hole Size (In.) | 44,930 |
| Product Type | Copper Compression Connectors - Lugs |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
