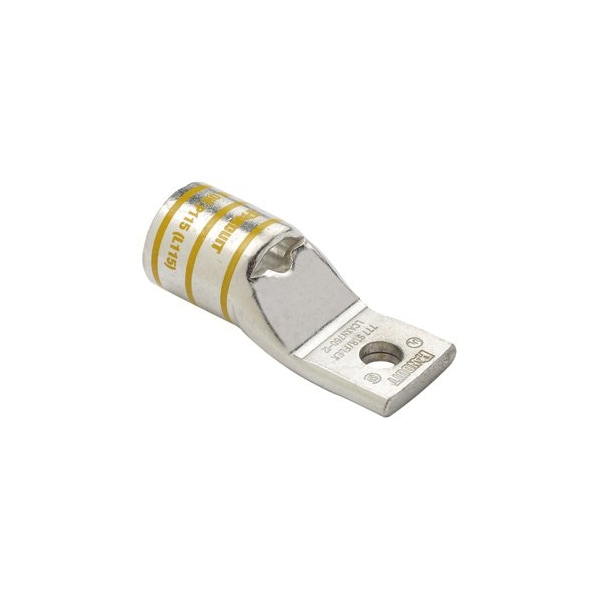

Terminal de compresión de cobre, 1 orificio, flexible, 50.
| Overall Length | 3.84 in |
|---|---|
| Features | Angled Connector |
| Barrel Length (mm) | 44.4 |
| Tongue Thickness (mm) | 8.1 |
| Overall Length (In.) | 3.84 |
| Stud Hole Size (In.) | 44,993 |
| Overall Length (mm) | 97.5 |
| Wire Strip Length (mm) | 49.2 |
| Stud Hole Size (mm) | 9.525 |
| Wire Strip Length (In.) | 1.93 |
| Barrel Length (In.) | 1-3/4 |
| Tongue Angle | Straight |
| Tongue Width (In.) | 1.3 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.32 |
| Tongue Width (mm) | 33 |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
