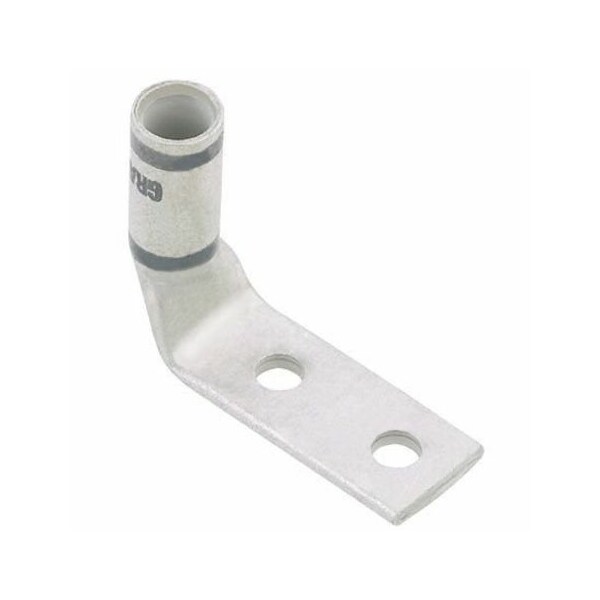

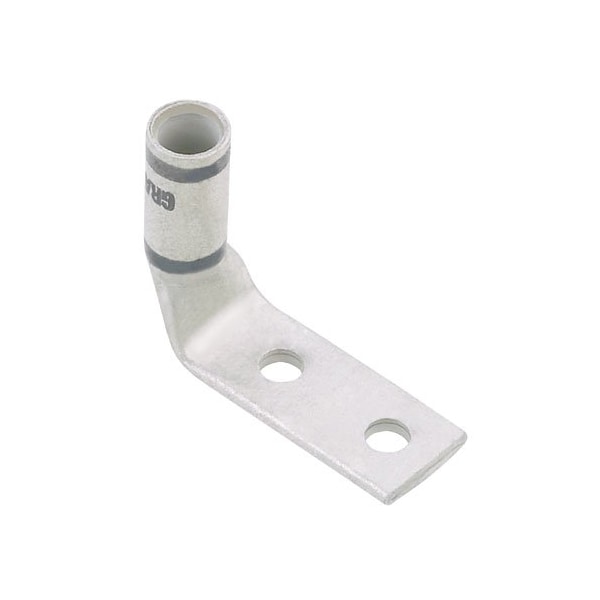

Terminal de compresión de cobre, con 2 hoyos, calibre #1 AWG F.
| Color Code | Green |
|---|---|
| Overall Length | 2.2 in |
| Features | Corrosion Resistant, 90° Angled Connector |
| Panduit Die Index Number | P37 |
| Copper Code Conductor Size (AWG) | 1 |
| Tongue Thickness (In.) | 0.12 |
| Product Type | Compression Connectors - Lugs |
| Class M Copper Flex Conductor Size (AWG) | 1 |
| Finish/Coating | Tin-Plated |
| Overall Length (mm) | 55.9 |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 2.2 |
| Burndy Die Index Number | 11 |
| Class I Copper Flex Conductor Size (AWG) | 1 |
| UL Temperature Rating (°C) | 90 |
| Class K Copper Flex Conductor Size (AWG) | 1 |
| Stud Hole Size (In.) | 44,930 |
| Class H Copper Flex Conductor Size (AWG) | 1 |
| Wire Strip Length (mm) | 19 |
| Stud Hole Spacing (In.) | 0.75 |
| DLO Copper Flex Conductor Size (AWG) | 1 |
| Barrel Length (mm) | 16.8 |
| Stud Hole Spacing (mm) | 19.1 |
| Tongue Type | Standard |
| Class G Copper Flex Conductor Size (AWG) | 1 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Thickness (mm) | 3 |
| Barrel Length (In.) | 0.66 |
| Base Material | Copper |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Color | Green |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
