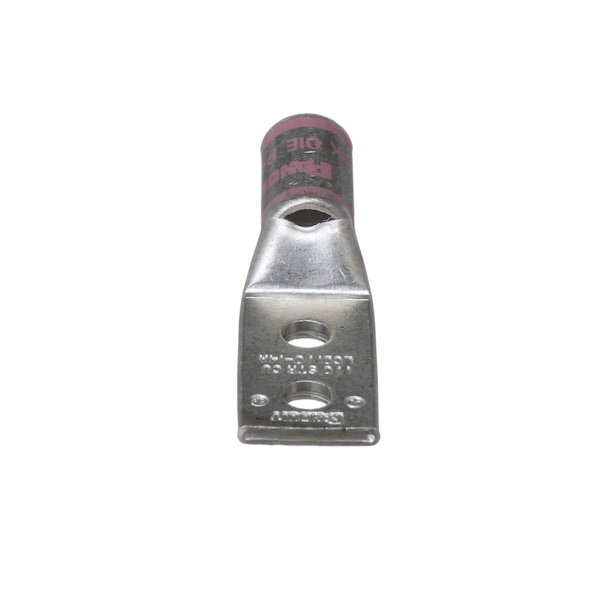

Terminal de compresión de cobre, de 2 orificios, calibre 1/0 AWG, con un orificio de 1/4 de pulgada, modelo LCD1/0-14A-X, paquete con 10 piezas.
| Length | 2.6 in |
|---|---|
| Color Code | Pink |
| Overall Length | 2.57 in |
| Features | Corrosion Resistant |
| Maximum Voltage (kV) | 35 |
| Overall Length (In.) | 2.57 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Thickness (In.) | 0.12 |
| Base Material | Copper |
| Wire Strip Length (mm) | 25.4 |
| Tongue Type | Standard |
| Wire Strip Length (In.) | 1 |
| Stud Hole Size (mm) | 6.4 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (mm) | 65.3 |
| Copper Code Conductor Size (AWG) | 36,526 |
| Barrel Length (mm) | 23.9 |
| Panduit Die Index Number | 42 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.94 |
| T & B Die Index Number | 43 |
| Tongue Width (mm) | 19.3 |
| Stud Hole Spacing (In.) | 0.63 |
| Burndy Die Index Number | 12 |
| Stud Hole Spacing (mm) | 16 |
| Finish/Coating | Tin-Plated |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Tongue Width (In.) | 0.76 |
| Tongue Thickness (mm) | 3 |
| Tongue Angle | Straight |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
