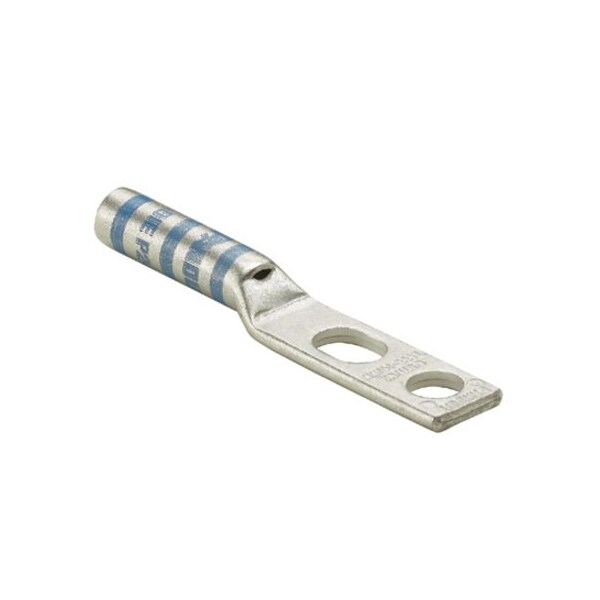

Conector de compresión de cobre, de 2 orificios, calibre #10.
| Length | 1.9 in |
|---|---|
| Overall Length | 1.93 in |
| Features | Corrosion Resistant |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Type | Long Barrel Length with Inspection Window |
| Overall Length (mm) | 49 |
| Barrel Length (In.) | 0.53 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (In.) | 44,930 |
| Wire Strip Length (mm) | 14.3 |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (In.) | 0.42 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Length (mm) | 13.5 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Copper Code Conductor Size (AWG) | 10 |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 1.93 |
| Tongue Width (mm) | 10.7 |
| Stud Hole Spacing (In.) | 0.63 |
| Base Material | Copper |
| Tongue Type | Standard |
| Stud Hole Spacing (mm) | 16 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
