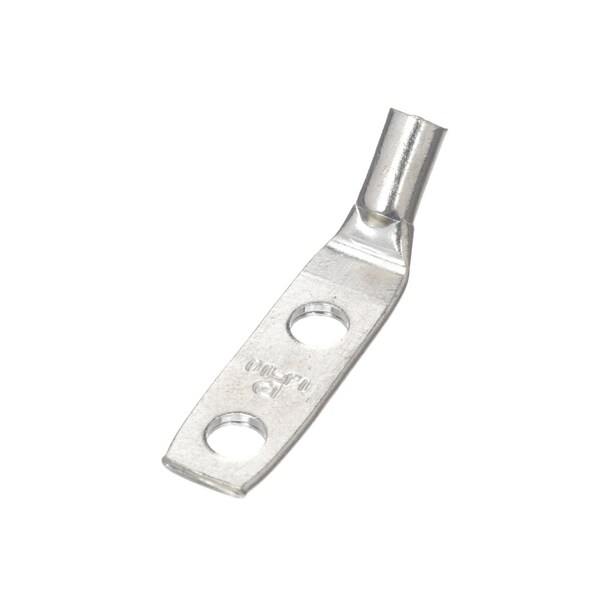

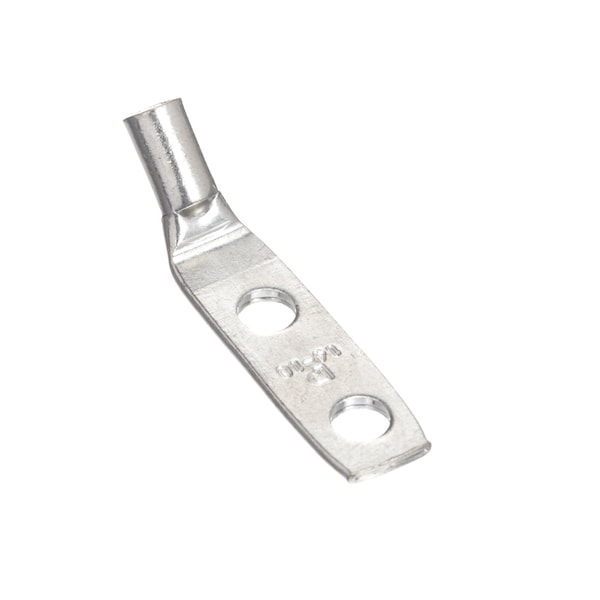

Terminal de compresión de cobre, con 2 agujeros, calibre #10 AWG.
| Length | 1.6 in |
|---|---|
| Overall Length | 1.59 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Wire Strip Length (In.) | 45,123 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (mm) | 4.8 |
| Base Material | Copper |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (mm) | 9.7 |
| Wire Strip Length (mm) | 11.1 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Thickness (mm) | 1.5 |
| Tongue Thickness (In.) | 0.06 |
| Stud Hole Size (In.) | 0.19 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 10 |
| Overall Length (In.) | 1.59 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (In.) | 0.38 |
| Tongue Angle | 45° |
| Tongue Width (mm) | 9.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (In.) | 0.38 |
| Overall Length (mm) | 40.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
