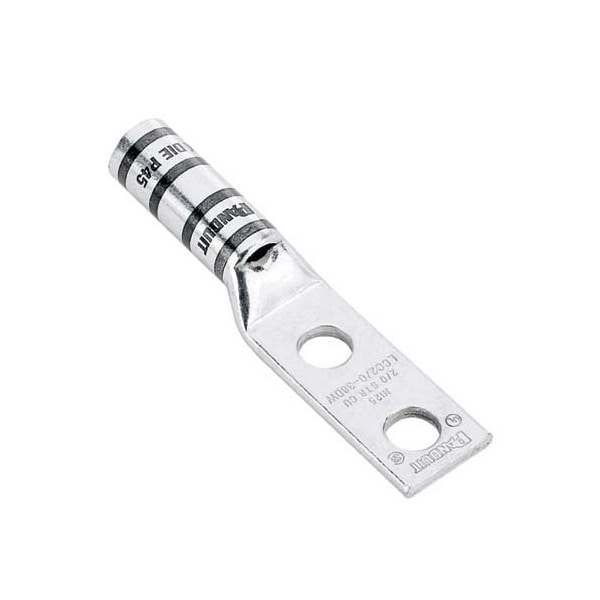

Terminal de compresión de cobre, 2 agujeros, 1000 Kcm.
| Material | Copper |
|---|---|
| Color Code | White |
| Barrel Length | 3 |
| Overall Length | 6.89 in |
| Tongue Width - Wire Connector | 2.17 |
| Hole Center to Center | 44563 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Tongue Style | Standard |
| Tongue Width (In.) | 2.17 |
| Stud Hole Size (In.) | 1 to 2 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Thickness (mm) | 8.1 |
| Stud Hole Spacing (In.) | 1.75 |
| Overall Length (mm) | 175 |
| Barrel Length (In.) | 3 |
| Panduit Die Index Number | P125 |
| Tongue Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.32 |
| Wire Strip Length (In.) | 3.06 |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (mm) | 12.7 |
| Copper Code Conductor Size (kcmil) | 1 |
| Burndy Die Index Number | 27 |
| Stud Hole Spacing (mm) | 44.5 |
| Overall Length (In.) | 6.89 |
| Tongue Width (mm) | 55.1 |
| Base Material | Copper |
| Wire Strip Length (mm) | 77.8 |
| Finish/Coating | Tin-Plated |
| Barrel Length (mm) | 76.2 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
