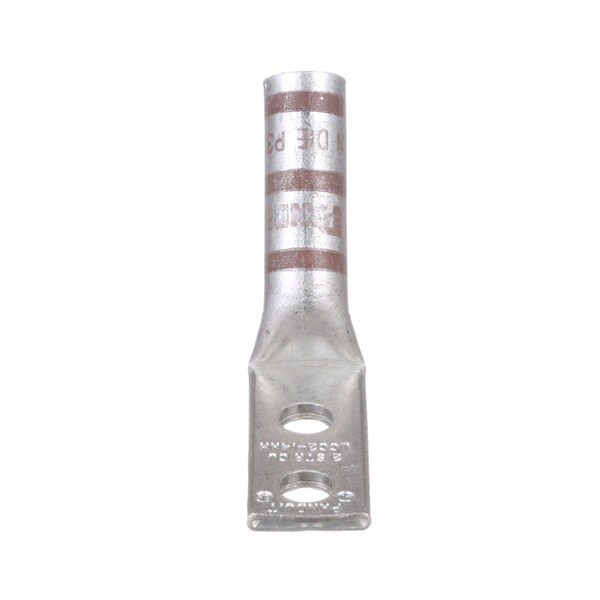

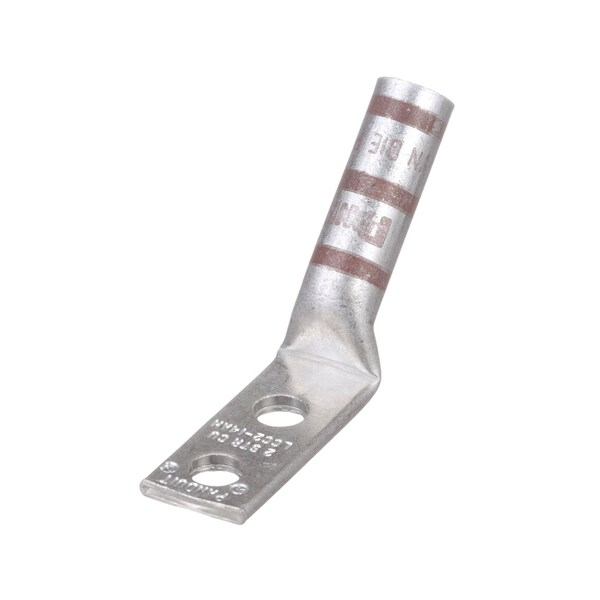

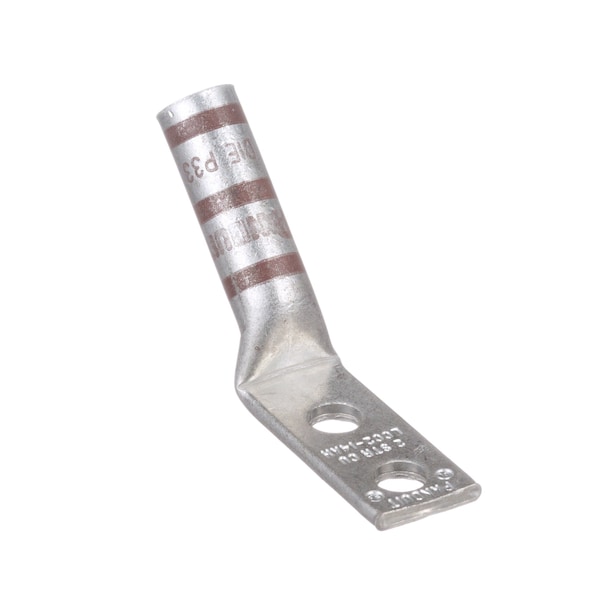

Terminal de compresión de cobre, de dos agujeros, calibre #2, 1/4 de pulgada (6.4mm) de diámetro, LCC2-14AH-Q.
| Length | 2.4 in |
|---|---|
| Color Code | Brown |
| Overall Length | 2.38 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Finish/Coating | Tin-Plated |
| Tongue Width (In.) | 0.6 |
| Barrel Length (mm) | 29.5 |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.1 |
| Stud Hole Spacing (In.) | 0.63 |
| Tongue Thickness (mm) | 2.5 |
| Wire Strip Length (In.) | 1.25 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 44,930 |
| Maximum Voltage (kV) | 35 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Overall Length (mm) | 60.5 |
| Stud Hole Size (mm) | 6.4 |
| Tongue Type | Standard |
| Overall Length (In.) | 2.38 |
| Wire Strip Length (mm) | 31.8 |
| Copper Code Conductor Size (AWG) | 2 |
| Product Type | Copper Compression Connectors - Lugs |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Width (mm) | 15.2 |
| Barrel Length (In.) | 1.16 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
