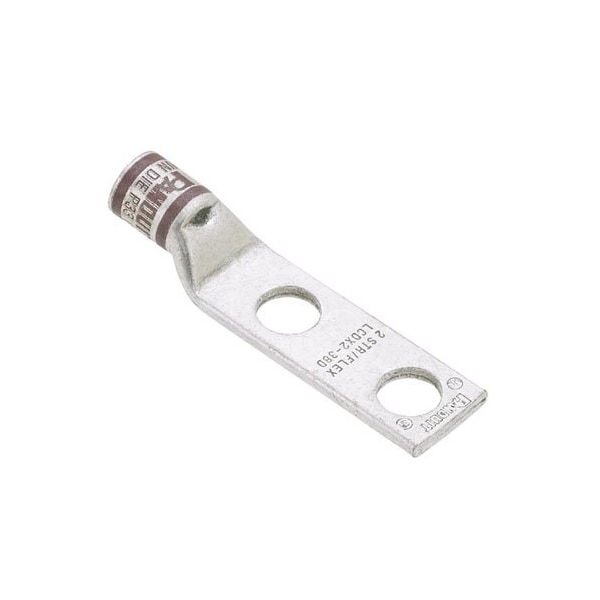

Terminal de compresión de cobre, de 2 agujeros, calibre #2 F.
| Material | Copper |
|---|---|
| Color Code | Brown |
| Standards | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Overall Length | 2.63 in |
| Tool Type | Compression Connectors - Lugs |
| Hole Center to Center | 44697 |
| Class H Copper Flex Conductor Size (AWG) | 2 |
| Maximum Voltage (kV) | 35 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Wire Strip Length (mm) | 17 |
| Barrel Length (mm) | 15 |
| T & B Die Index Number | 33 |
| Stud Hole Spacing (mm) | 25.4 |
| Copper Code Conductor Size (AWG) | 2 |
| Overall Length (mm) | 66.8 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Stud Hole Size (In.) | 45,062 |
| Panduit Die Index Number | P33 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Burndy Die Index Number | 10 |
| Barrel Length (In.) | 0.59 |
| Product Type | Compression Connectors - Lugs |
| Tongue Type | Standard |
| Class G Copper Flex Conductor Size (AWG) | 2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| UL Temperature Rating (°C) | 90 |
| Wire Strip Length (In.) | 45,246 |
| Stud Hole Spacing (In.) | 1 |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (In.) | 0.7 |
| Tongue Angle | Straight |
| Overall Length (In.) | 2.63 |
| Class I Copper Flex Conductor Size (AWG) | 2 |
| Stud Hole Size (mm) | 7.9 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| Tongue Width (mm) | 17.8 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
