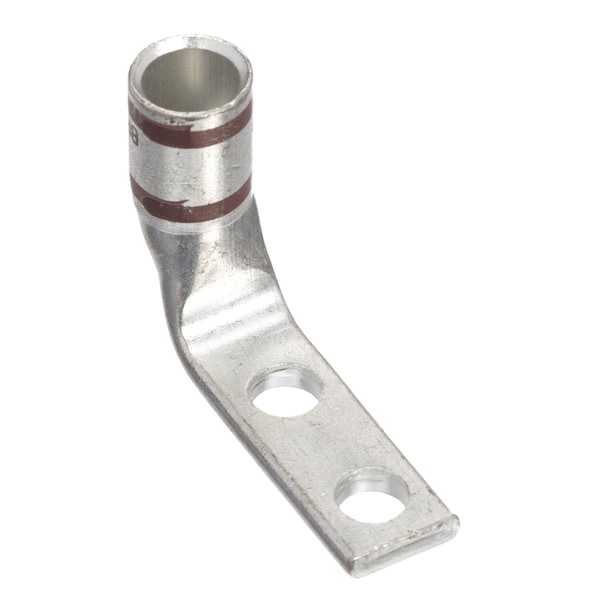

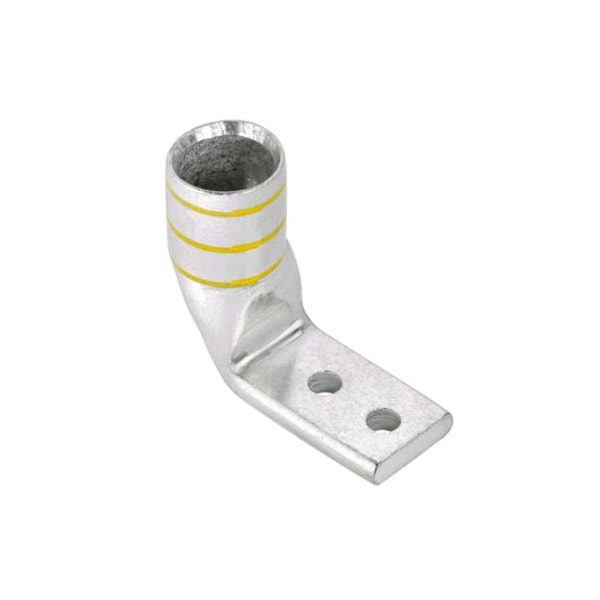

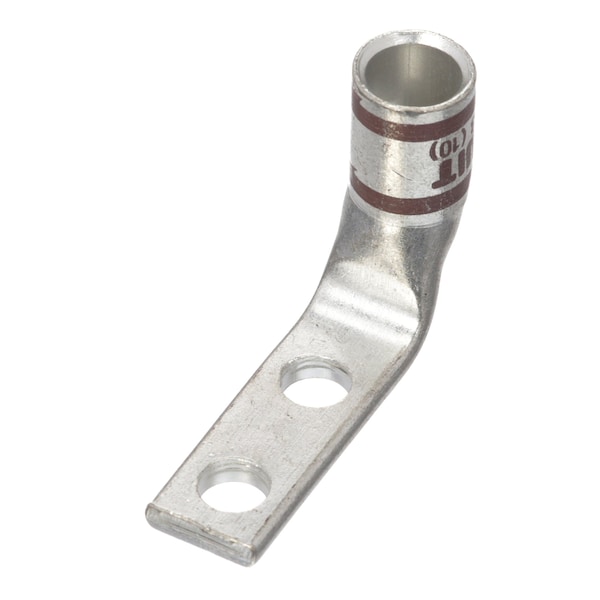

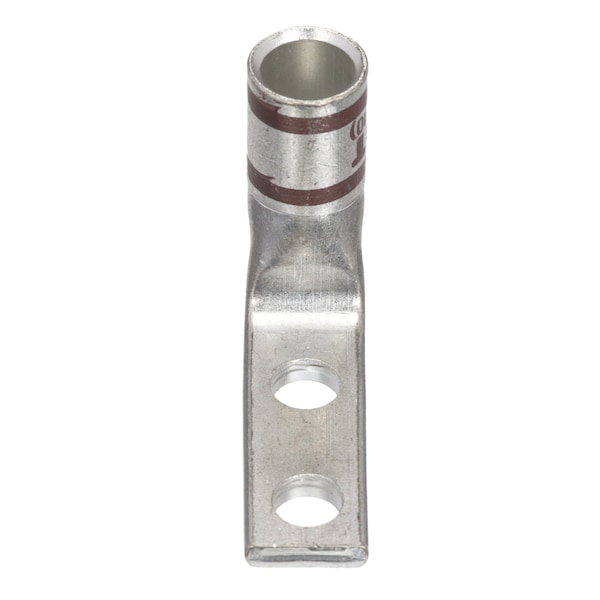

Terminal de compresión de cobre, de 2 hoyos, calibre #2, lengüeta estrecha, modelo LCDXN2-14AF-E.
| Overall Length | 1.94 in |
|---|---|
| Features | Corrosion Resistant, 90° Angled Connector |
| Wire Strip Length (mm) | 17.5 |
| Tongue Thickness (mm) | 2.8 |
| Tongue Width (mm) | 11.9 |
| Wire Strip Length (In.) | 42,675 |
| Barrel Length (mm) | 15 |
| Overall Length (In.) | 1.94 |
| Tongue Width (In.) | 0.47 |
| Product Type | Compression Connectors - Lugs |
| Stud Hole Spacing (In.) | 0.63 |
| Overall Length (mm) | 49.3 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Thickness (In.) | 0.13 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Length (In.) | 0.59 |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
