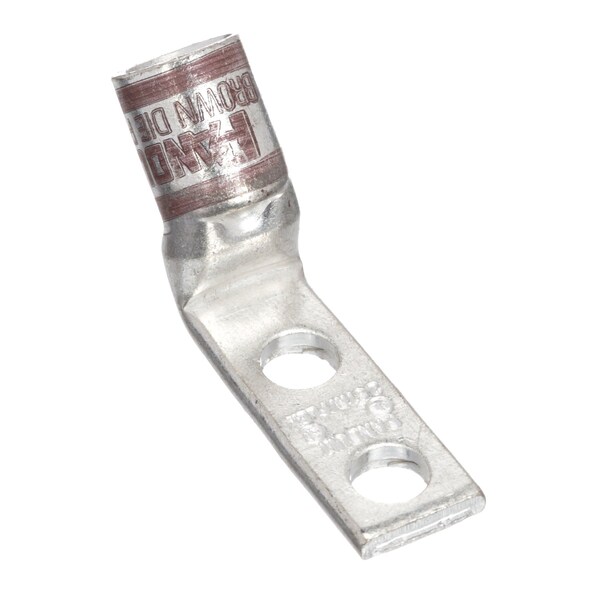

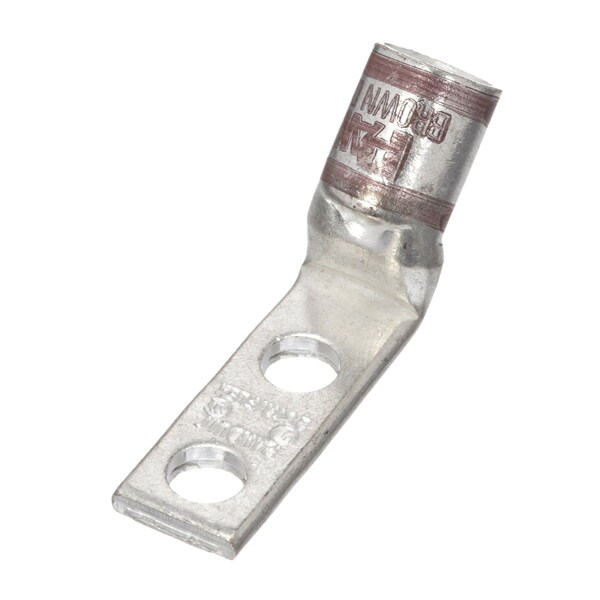

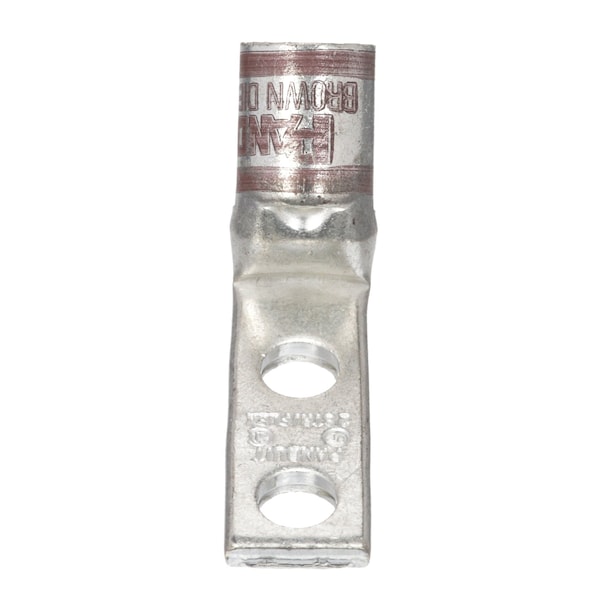

Terminal de compresión de cobre, de 2 hoyos, calibre #2 AWG, lengüeta estrecha, modelo LCDXN2-14AH-E
| Overall Length | 1.92 in |
|---|---|
| Features | 45° Angled Connector, Corrosion Resistant |
| Tongue Thickness (mm) | 2.8 |
| Tongue Width (mm) | 11.9 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Width (In.) | 0.47 |
| Stud Hole Size (In.) | 44,930 |
| Product Type | Compression Connectors - Lugs |
| Stud Hole Spacing (mm) | 16 |
| Overall Length (mm) | 48.8 |
| Wire Strip Length (mm) | 75 |
| Barrel Length (In.) | 0.59 |
| Wire Strip Length (In.) | 42,675 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Overall Length (In.) | 1.92 |
| Barrel Length (mm) | 15 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
