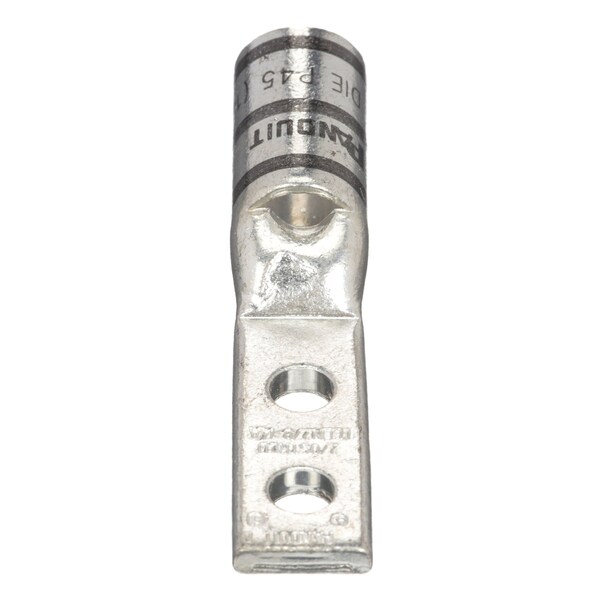

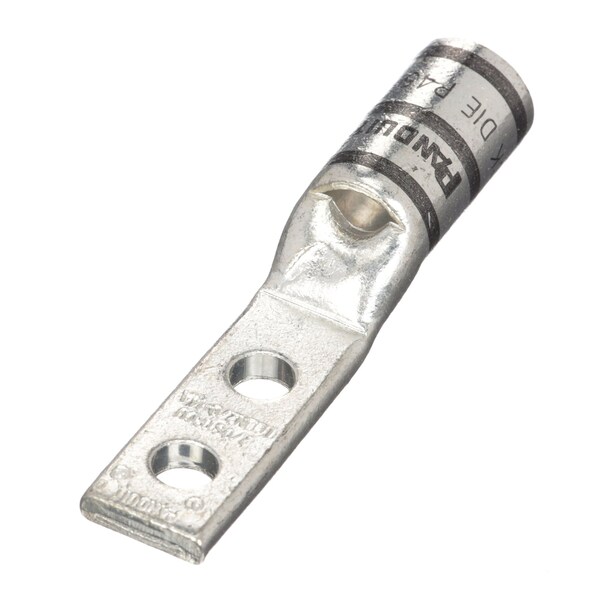

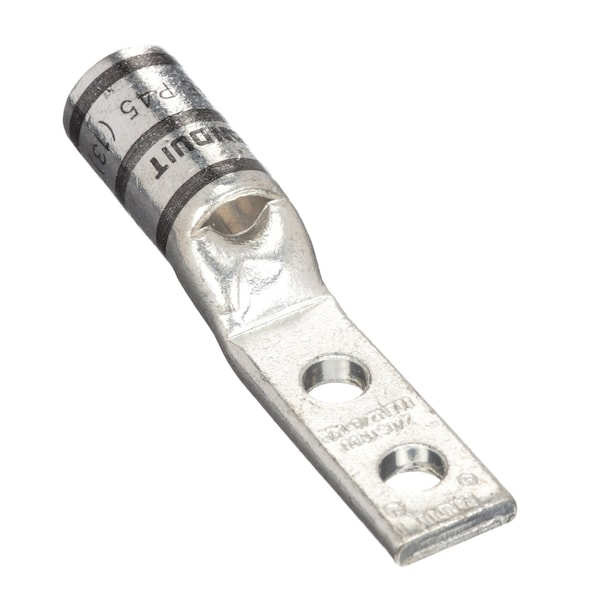

Terminal de Compresión de Cobre, 2 Orificios, 2/0 AWG.
| Length | 2.7 in |
|---|---|
| Color Code | Black |
| Overall Length | 2.71 in |
| Features | Corrosion Resistant |
| Overall Length (mm) | 68.8 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Spacing (mm) | 16 |
| Stud Hole Spacing (In.) | 0.63 |
| Maximum Voltage (kV) | 35 |
| Copper Code Conductor Size (AWG) | 36,557 |
| Tongue Width (In.) | 0.58 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Wire Strip Length (mm) | 27 |
| Stud Hole Size (In.) | 44,930 |
| Burndy Die Index Number | 13 |
| UL Temperature Rating (°C) | 90 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Stud Hole Size (mm) | 6.4 |
| Wire Strip Length (In.) | 1.06 |
| Barrel Length (mm) | 24.9 |
| Panduit Die Index Number | P45 |
| Barrel Length (In.) | 0.98 |
| Tongue Width (mm) | 14.7 |
| Tongue Type | Narrow |
| Overall Length (In.) | 2.71 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Class | Lugs, Splices, Accessories, Split Bolts |
| Package Quantity | 1 |
