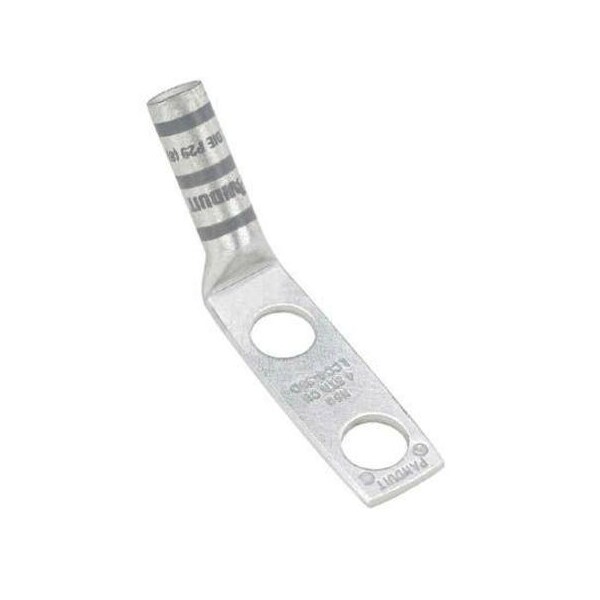

Terminal de compresión de cobre, 2 agujeros, 250 kcmil, 3/8 (9.5mm), LCC250-38DH-X.
| Material | Tin-Plated Copper |
|---|---|
| Length | 3-1/2 in |
| Overall Length | 3.51 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Tin-Plating Meets ASTM B545-97, Class C | 320µ in (8µ m) |
| Stud Hole Size (In.) | 44,993 |
| Burndy Die Index No. | 16 |
| Barrel Length In. (mm) | 1.61 |
| Stud Hole Size In. (mm) | 0.375 |
| Clearance | 0.47 |
| Stud Hole Spacing (In.) | 1 |
| Angle | 45° |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (mm) | 40.9 |
| Wire Strip Length (In.) | 1.6875 |
| UL and CSA Voltage Rating | 35kV |
| Tongue Width In. (mm) | 1.17 |
| Tongue Width (In.) | 1.17 |
| Conductor Material | Copper |
| Length In (mm) | 3.51 |
| Length (In.) | 3.51 |
| Tongue Type | Standard |
| CSA Certified | C22.2 No. 65-13 |
| Tongue Thickness | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Conductor Size | 250 kcmil Code |
| Tongue Width (mm) | 29.7 |
| Wire Strip Length In. (mm) | 1.6875 |
| Panduit Color Code | Yellow |
| Barrel Style | Standard |
| Code Conductor Size | 250 kcmil Code |
| Barrel Length (In.) | 1.61 |
| Wire Strip Length (mm) | 42.9 |
| Tested by Telcordia-Meets NEBS Level 3 | Yes |
| Barrel Type | Long Barrel Length without Inspection Window |
| UL and CSA Temperature Rating | 90° |
| Stud Hole Spacing In. (mm) | 1 |
| Length (mm) | 89.2 |
| Stud Hole Spacing (mm) | 25.4 |
| T&B Die Index No. | 62 |
| Tongue Thickness In. (mm) | 0.14 |
| Copper Conductor Size | 250 kcmil |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Type | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
