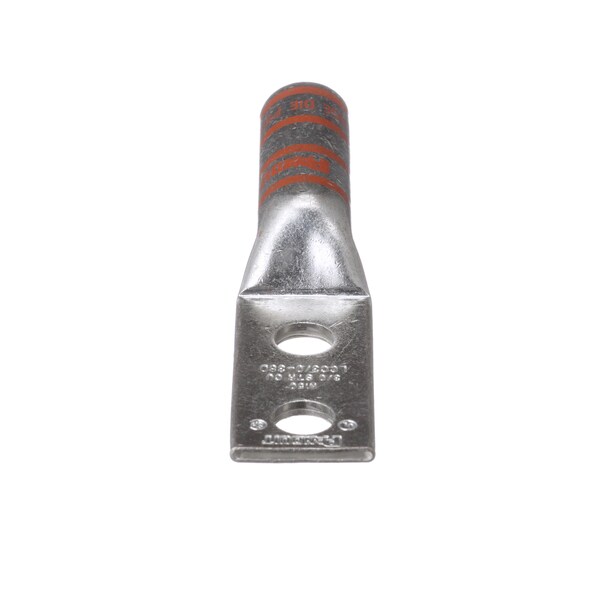

Terminal de compresión de cobre, de 2 orificios, calibre 3/0 AWG.
| Color Code | Orange |
|---|---|
| Overall Length | 3.87 in |
| Panduit Die Index Number | P50 |
| Tongue Thickness (mm) | 3.3 |
| Tongue Width (In.) | 0.96 |
| UL Temperature Rating (°C) | 90 |
| Base Material | Copper |
| Barrel Type | Long Barrel Length without Inspection Window |
| Maximum Voltage (kV) | 35 |
| Copper Code Conductor Size (AWG) | 36,586 |
| Product Type | Copper Compression Connectors - Lugs |
| Wire Strip Length (mm) | 39.7 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Type | Standard |
| Overall Length (mm) | 98.3 |
| Overall Length (In.) | 3.87 |
| Tongue Width (mm) | 24.4 |
| Barrel Length (In.) | 1-1/2 |
| Wire Strip Length (In.) | 1.56 |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 44,993 |
| Barrel Length (mm) | 38.1 |
| Stud Hole Spacing (mm) | 25.4 |
| Stud Hole Spacing (In.) | 1 |
| Burndy Die Index Number | 14 |
| Stud Hole Size (mm) | 9.5 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
