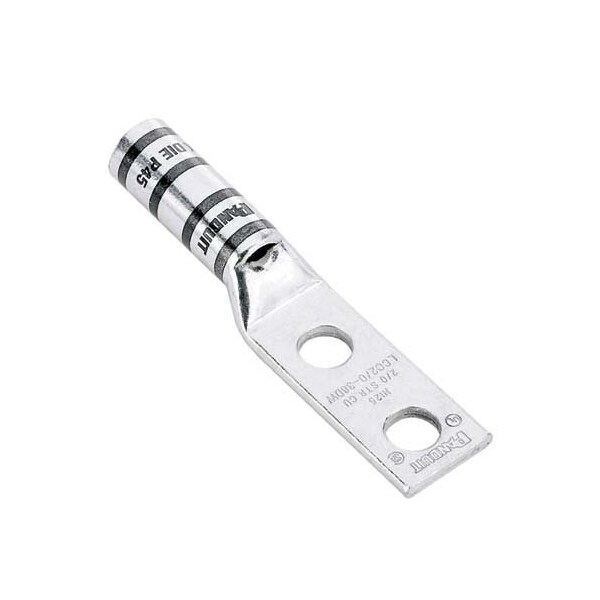

Terminal de compresión de cobre, con dos agujeros, 300 Kcmi.
| Material | Copper |
|---|---|
| Color Code | White |
| Hole Center to Center | 44563 |
| Tongue Style | Standard |
| Barrel Length | 2.24 |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Overall Length | 5.72 in |
| Tongue Width (In.) | 1.19 |
| Stud Hole Size (mm) | 12.7 |
| Copper Code Conductor Size (kcmil) | 300 |
| Stud Hole Spacing (mm) | 44.5 |
| Overall Length (mm) | 145.3 |
| Overall Length (In.) | 5.72 |
| Burndy Die Index Number | 17 |
| Wire Strip Length (In.) | 2.31 |
| Barrel Length (mm) | 56.9 |
| Tongue Width (mm) | 30.2 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (mm) | 58.7 |
| Stud Hole Size (In.) | 1 to 2 |
| Copper Conductor Size (kcmil) | 300 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Thickness (In.) | 0.16 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (In.) | 2.24 |
| Tongue Thickness (mm) | 4.1 |
| Panduit Die Index Number | P66 |
| Base Material | Copper |
| Barrel Type | Long Barrel Length with Inspection Window |
| Tongue Type | Standard |
| Finish/Coating | Tin-Plated |
| Product Class | Wire Termination |
| Package Quantity | 1 |
