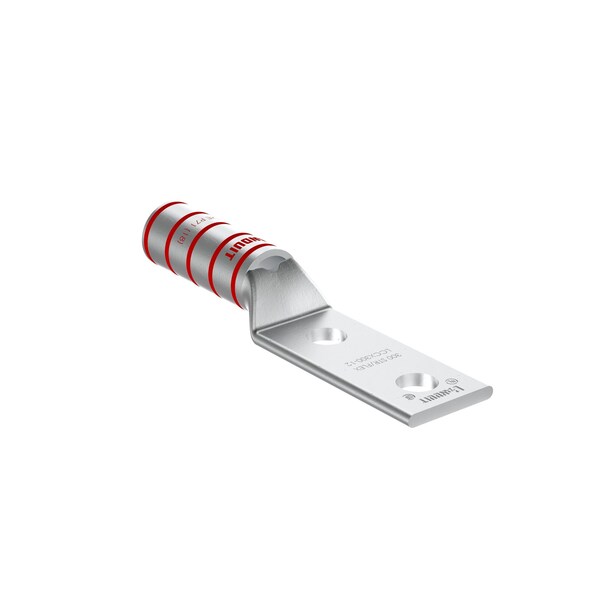

Terminal de compresión de cobre, de 2 agujeros, para cable de calibre 300.
| Color Code | Red |
|---|---|
| Overall Length | 5.85 in |
| Wire Strip Length (mm) | 60.3 |
| Outer Diameter (In.) | 0.95 |
| Wire Strip Length (In.) | 39,481 |
| Stud Hole Spacing (mm) | 44.5 |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Size (mm) | 12.7 |
| Inside Diameter (mm) | 19.3 |
| Tongue Thickness (In.) | 0.18 |
| Barrel Length (mm) | 58.4 |
| Burndy Die Index Number | 18 |
| Inside Diameter (In.) | 0.76 |
| Outer Diameter (mm) | 24.13 |
| Overall Length (mm) | 148.6 |
| Lug Type | 2 Stud Hole Lug |
| Barrel Length (In.) | 2.3 |
| Stud Hole Size (In.) | 1 to 2 |
| Barrel Type | Barrel with Inspection Window |
| UL Temperature Rating (°C) | 90 |
| T & B Die Index Number | 18 |
| Overall Length (In.) | 5.85 |
| Finish/Coating | Tin-Plated |
| DLO Copper Flex Conductor Size (kcmil) | 313.1 |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 4.6 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Angle | Straight |
| Panduit Die Index Number | P71 |
| Base Material | Copper |
| Maximum Voltage (kV) | 35 |
| Stud Hole Spacing (In.) | 1.75 |
| Outside Diameter Inches | 0.95 in |
| Product Class | Wire Termination |
| Package Quantity | 1 |
