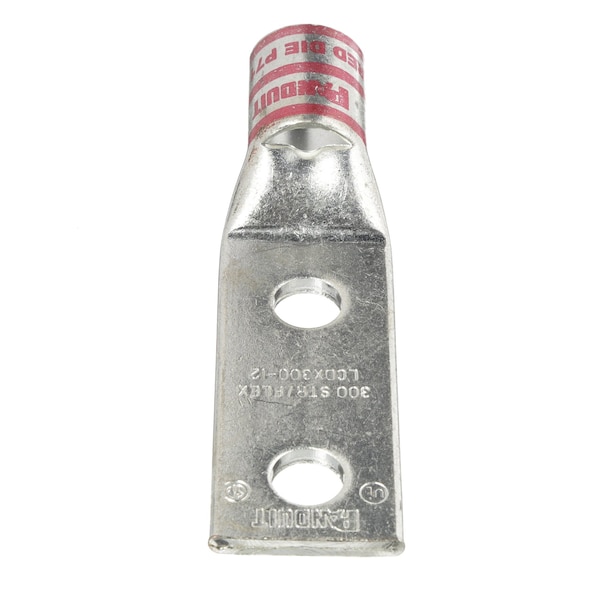

Terminal de compresión de cobre, 2 orificios, 300 Kcmi
| Material | Copper |
|---|---|
| Color Code | Red |
| Hole Center to Center | 44563 |
| Overall Length | 4.74 in |
| Tool Type | Compression Connectors - Lugs |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Type | Standard |
| Base Material | Copper |
| Burndy Die Index Number | 18 |
| Wire Strip Length (mm) | 32 |
| Product Type | Compression Connectors - Lugs |
| Barrel Length (mm) | 30.2 |
| Tongue Width (In.) | 1.39 |
| DLO Copper Flex Conductor Size (kcmil) | 313.1 |
| Stud Hole Size (mm) | 12.7 |
| Class I Copper Flex Conductor Size (kcmil) | 300 |
| Stud Hole Spacing (mm) | 44.5 |
| Finish/Coating | Tin-Plated |
| Class K Copper Flex Conductor Size (kcmil) | 300 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Thickness (mm) | 4.6 |
| Tongue Width (mm) | 35.3 |
| Class M Copper Flex Conductor Size (kcmil) | 300 |
| Tongue Thickness (In.) | 0.18 |
| Overall Length (mm) | 120.4 |
| Overall Length (In.) | 4.74 |
| Stud Hole Size (In.) | 1 to 2 |
| Wire Strip Length (In.) | 1.25 |
| Maximum Voltage (kV) | 35 |
| Panduit Die Index Number | P71 |
| UL Temperature Rating (°C) | 90 |
| Class G Copper Flex Conductor Size (kcmil) | 300 |
| Class H Copper Flex Conductor Size (kcmil) | 300 |
| Barrel Length (In.) | 1.19 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
