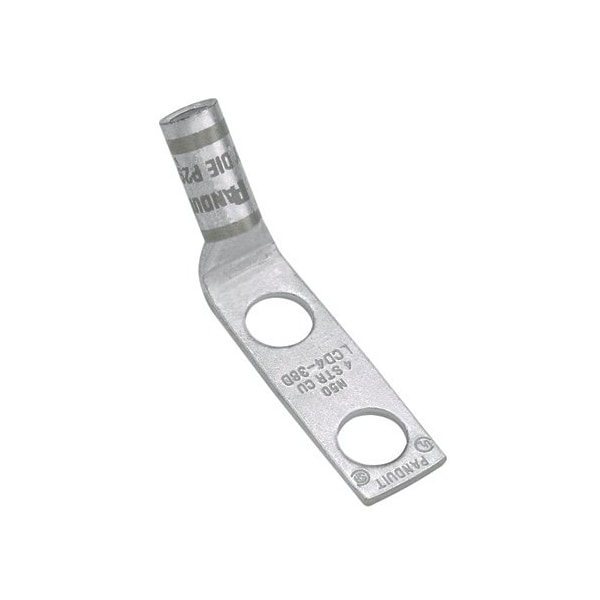

Terminal de compresión de cobre, de 2 orificios, para cable del calibre #4 - #3.
| Material | Copper |
|---|---|
| Color Code | Gray |
| Hole Center to Center | 44565 |
| Tongue Style | Standard |
| Tongue Width - Wire Connector | 0.55 |
| Overall Length | 2.03 in |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Barrel Length | 0.81 |
| Stud Hole Size (In.) | 44,930 |
| Burndy Die Index Number | 8 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.09 |
| Overall Length (mm) | 51.6 |
| Copper Code Conductor Size (AWG) | 4 |
| Tongue Width (In.) | 0.55 |
| Stud Hole Spacing (mm) | 16 |
| Product Type | Copper Compression Connectors - Lugs |
| Tongue Width (mm) | 14 |
| Stud Hole Size (mm) | 6.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Maximum Voltage (kV) | 35 |
| Stud Hole Spacing (In.) | 0.63 |
| Base Material | Copper |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.03 |
| Finish/Coating | Tin-Plated |
| Tongue Type | Standard |
| Panduit Die Index Number | 29 |
| Barrel Length (In.) | 0.81 |
| Wire Strip Length (mm) | 22.2 |
| Barrel Length (mm) | 20.6 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
