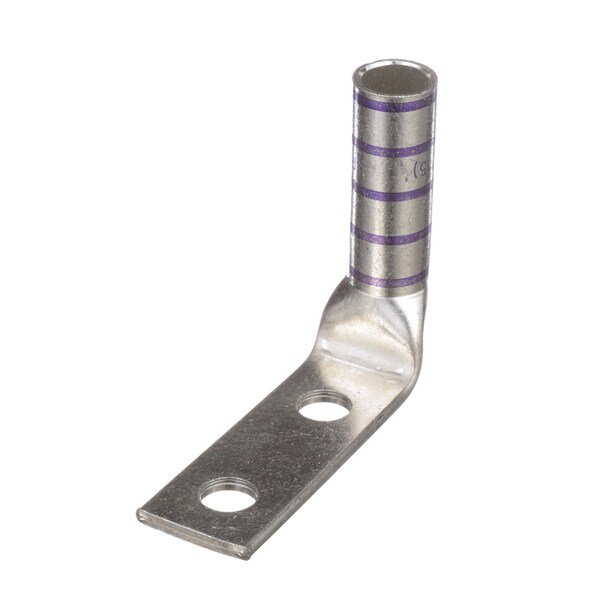

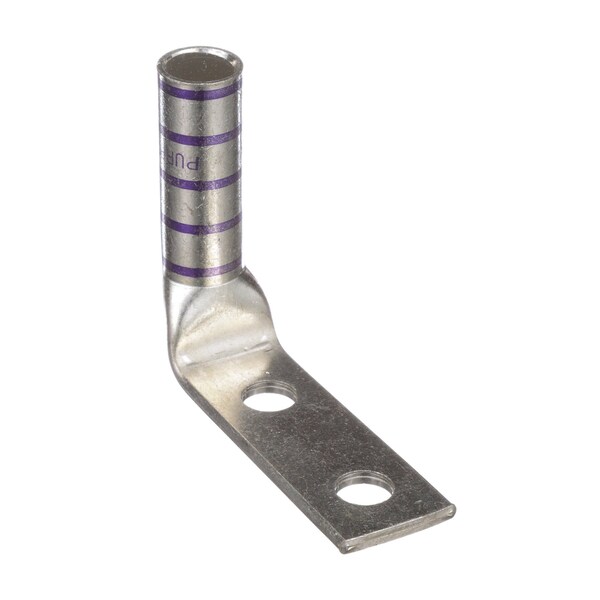

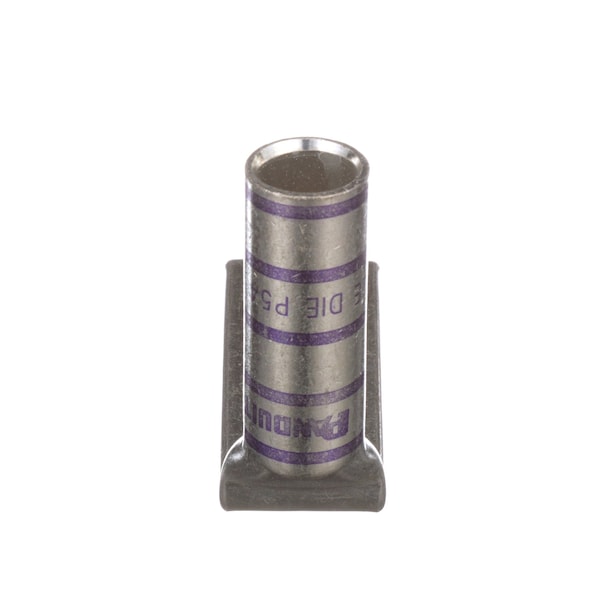

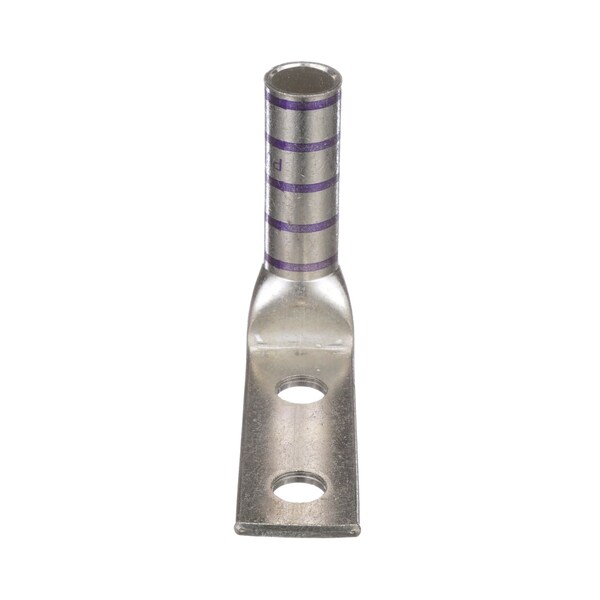

Conexión de compresión de cobre, 2 orificios, calibre 4/0 AWG.
| Color Code | Purple |
|---|---|
| Overall Length | 4.06 in |
| Features | 90° Angled Connector, Corrosion Resistant |
| Class K Copper Flex Conductor Size (AWG) | 36,617 |
| Tongue Type | Standard |
| DLO Copper Flex Conductor Size (AWG) | 36,617 |
| Barrel Length (mm) | 56.9 |
| Class G Copper Flex Conductor Size (AWG) | 36,617 |
| Class M Copper Flex Conductor Size (AWG) | 36,617 |
| Tongue Thickness (mm) | 4.1 |
| Stud Hole Spacing (mm) | 44.5 |
| Class H Copper Flex Conductor Size (AWG) | 36,617 |
| Stud Hole Spacing (In.) | 1.75 |
| Class I Copper Flex Conductor Size (AWG) | 36,617 |
| Stud Hole Size (In.) | 1 to 2 |
| Tongue Width (In.) | 1.19 |
| Wire Strip Length (mm) | 59 |
| UL Temperature Rating (°C) | 90 |
| Finish/Coating | Tin-Plating |
| Barrel Length (In.) | 2.24 |
| Tongue Thickness (In.) | 0.16 |
| Wire Strip Length (In.) | 2.31 |
| Maximum Voltage (kV) | 35 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Base Material | Copper |
| Panduit Die Index Number | P54 |
| Copper Code Conductor Size (AWG) | 36,617 |
| Overall Length (mm) | 103.1 |
| Stud Hole Size (mm) | 12.7 |
| Product Type | Compression Connectors - Lugs |
| Tongue Width (mm) | 30.2 |
| Overall Length (In.) | 4.06 |
| Burndy Die Index Number | 15 |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Class | Wire Termination |
| Package Quantity | 1 |
