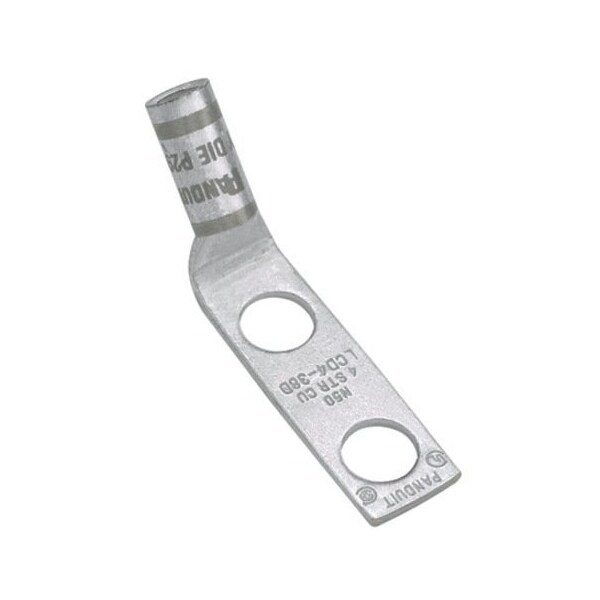

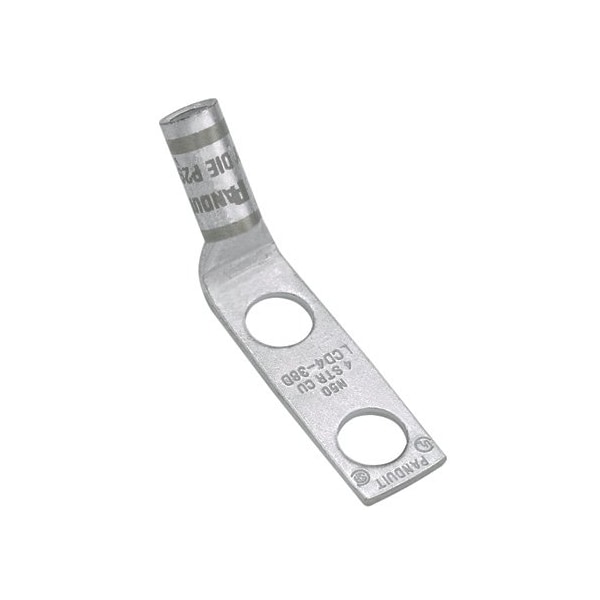

Terminal de compresión de cobre, 2 agujeros, calibre 4/0 AWG.
| Length | 3.1 in |
|---|---|
| Color Code | Purple |
| Overall Length | 3.05 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Barrel Length (In.) | 1.19 |
| Product Type | Copper Compression Connectors - Lugs |
| Panduit Die Index Number | P54 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Overall Length (In.) | 3.05 |
| Tongue Width (mm) | 26.9 |
| Wire Strip Length (mm) | 31.8 |
| Copper Code Conductor Size (AWG) | 36,617 |
| Stud Hole Spacing (mm) | 25.4 |
| Burndy Die Index Number | 15 |
| Tongue Type | Standard |
| Maximum Voltage (kV) | 35 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Width (In.) | 1.06 |
| Wire Strip Length (In.) | 1.25 |
| Tongue Thickness (mm) | 3.6 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Barrel Length (mm) | 30.2 |
| Overall Length (mm) | 77.5 |
| Stud Hole Size (In.) | 44,993 |
| Stud Hole Spacing (In.) | 1 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.14 |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
