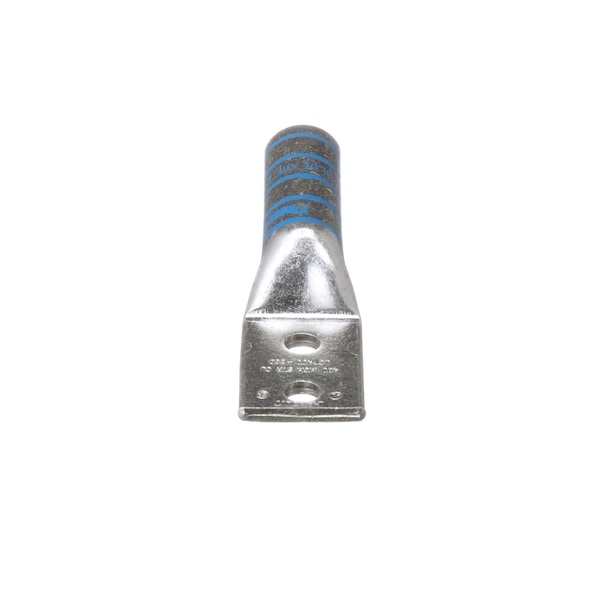

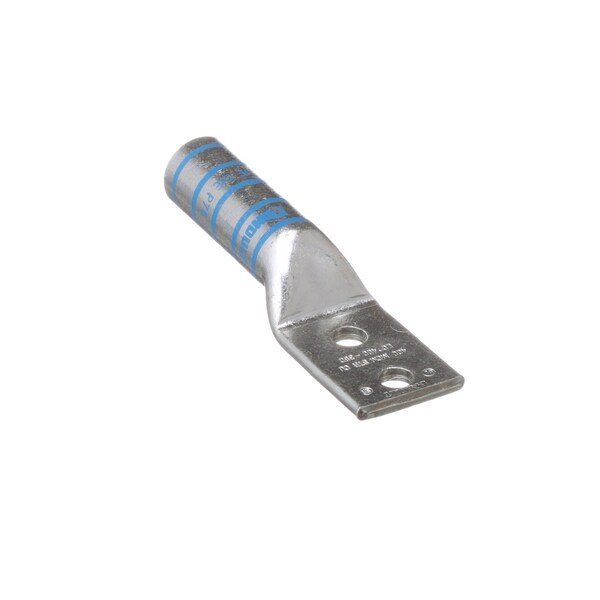

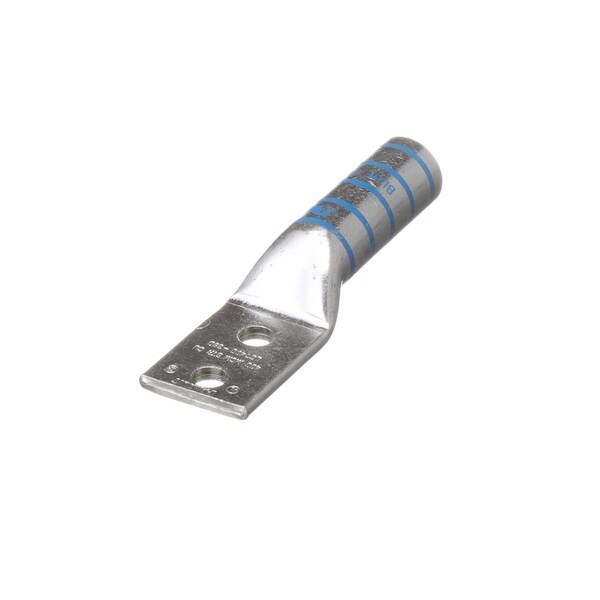

Conector de compresión de cobre, de 2 orificios, calibre 400kcmil, 3/8 (9.5mm), LCC400-38D-6
| Length | 4.9 in |
|---|---|
| Color Code | Blue |
| Overall Length | 4.92 in |
| Features | Corrosion Resistant |
| Wire Strip Length (In.) | 2.38 |
| Tongue Thickness (mm) | 4.6 |
| Stud Hole Size (In.) | 44,993 |
| Stud Hole Size (mm) | 9.5 |
| Barrel Length (mm) | 58.4 |
| Panduit Die Index Number | P76 |
| UL Temperature Rating (°C) | 90 |
| Overall Length (In.) | 4.92 |
| Tongue Width (In.) | 1.39 |
| Wire Strip Length (mm) | 60.3 |
| Tongue Width (mm) | 35.3 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Overall Length (mm) | 125 |
| Maximum Voltage (kV) | 35 |
| Barrel Length (In.) | 2.3 |
| Product Type | Copper Compression Connectors - Lugs |
| Finish/Coating | Tin-Plated |
| Base Material | Copper |
| Tongue Thickness (In.) | 0.18 |
| Burndy Die Index Number | 19 |
| Stud Hole Spacing (In.) | 1 |
| Tongue Type | Standard |
| Copper Code Conductor Size (kcmil) | 400 |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
