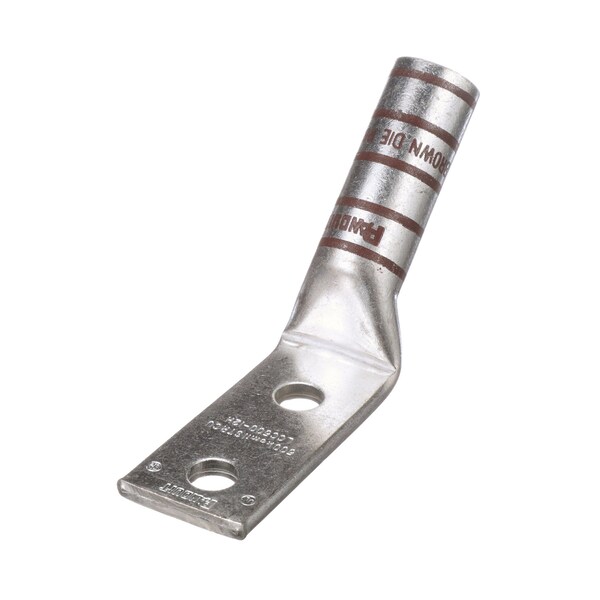

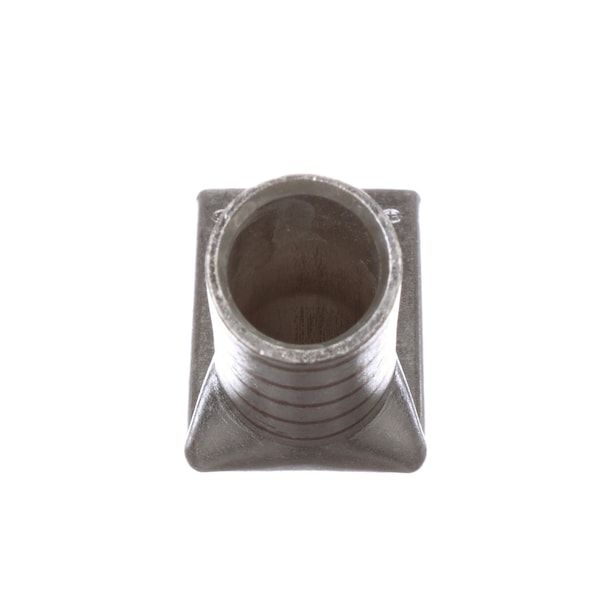

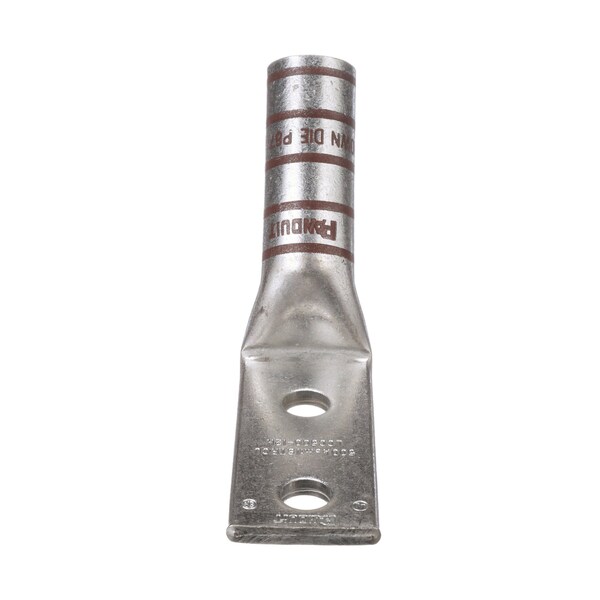

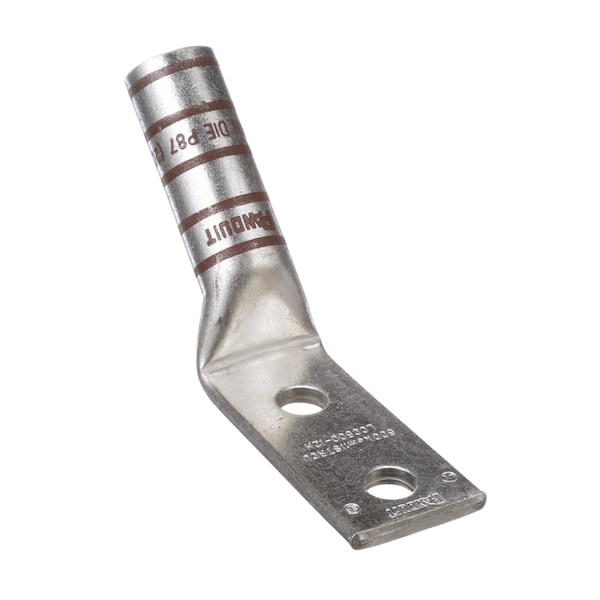

Terminal de compresión de cobre, de 2 orificios, calibre 500 kcmil.
| Length | 0.8 in |
|---|---|
| Color Code | Brown |
| Overall Length | 5.57 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Product Type | Copper Compression Connectors - Lugs |
| Stud Hole Spacing (mm) | 44.5 |
| UL Temperature Rating (°C) | 90 |
| Tongue Width (In.) | 1.54 |
| Wire Strip Length (mm) | 65.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (mm) | 141.5 |
| Barrel Length (In.) | 2-1/2 |
| Tongue Width (mm) | 39.1 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Size (In.) | 1 to 2 |
| Burndy Die Index Number | 20 |
| Base Material | Copper |
| Panduit Die Index Number | P87 |
| Wire Strip Length (In.) | 2.56 |
| Copper Code Conductor Size (kcmil) | 500 |
| Stud Hole Size (mm) | 12.7 |
| Overall Length (In.) | 5.57 |
| Finish/Coating | Tin-Plated |
| Barrel Length (mm) | 63.5 |
| Maximum Voltage (kV) | 35 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
