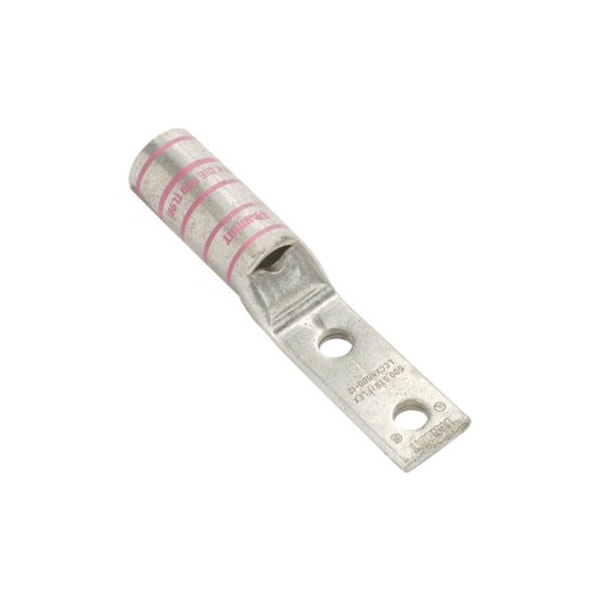

Terminal de compresión de cobre, de 2 orificios, 500 kcmi.
| Overall Length | 6.71 in |
|---|---|
| Features | Corrosion Resistant |
| Wire Strip Length (In.) | 2.94 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Width (mm) | 33 |
| Stud Hole Size (mm) | 12.7 |
| Tongue Thickness (mm) | 8.1 |
| Barrel Length (In.) | 2.88 |
| Stud Hole Spacing (mm) | 44.5 |
| Overall Length (mm) | 170.4 |
| Overall Length (In.) | 6.71 |
| Product Type | Compression Connectors - Lugs |
| Tongue Thickness (In.) | 0.32 |
| Wire Strip Length (mm) | 74.6 |
| Tongue Width (In.) | 1.3 |
| Barrel Length (mm) | 73.2 |
| Stud Hole Size (In.) | 1 to 2 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Barrel Type | Long Barrel Length with Inspection Window |
| Package Quantity | 1 |
