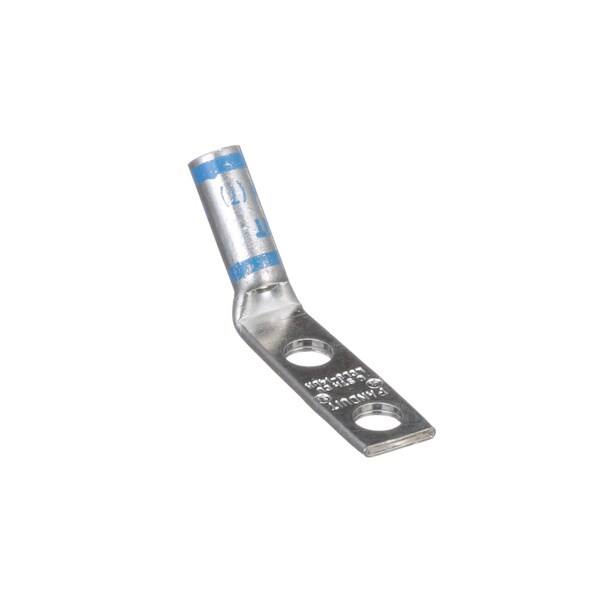

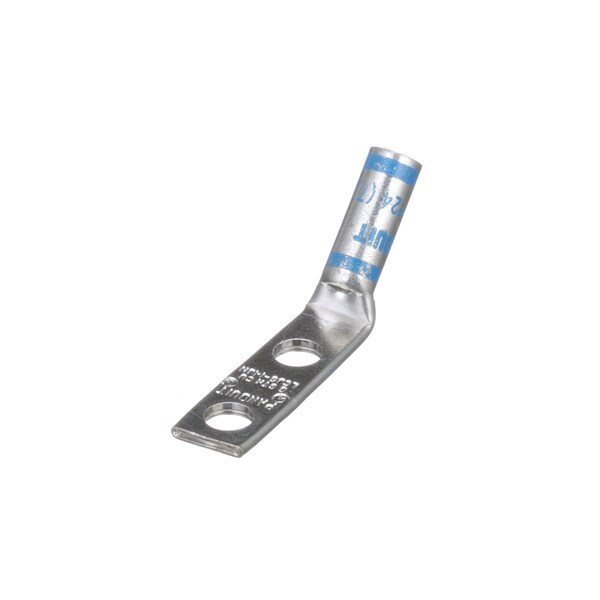

Terminal de compresión de cobre, de 2 orificios, calibre #6 AWG, perno de 1/4 de pulgada (6.4mm), modelo LCD6-14BH-L.
| Length | 2.1 in |
|---|---|
| Color Code | Blue |
| Overall Length | 2.13 in |
| Features | 45° Angled Connector, Corrosion Resistant |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 12.2 |
| Barrel Length (In.) | 0.81 |
| Wire Strip Length (mm) | 22.2 |
| Overall Length (In.) | 2.13 |
| Panduit Die Index Number | P24 |
| Barrel Length (mm) | 20.6 |
| Stud Hole Spacing (In.) | 0.75 |
| Tongue Thickness (mm) | 2 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 19.1 |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (mm) | 54.1 |
| Base Material | Copper |
| Burndy Die Index Number | 7 |
| Tongue Thickness (In.) | 0.08 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Copper Code Conductor Size (AWG) | 6 |
| Tongue Width (In.) | 0.48 |
| Stud Hole Size (In.) | 44,930 |
| Tongue Type | Standard |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
