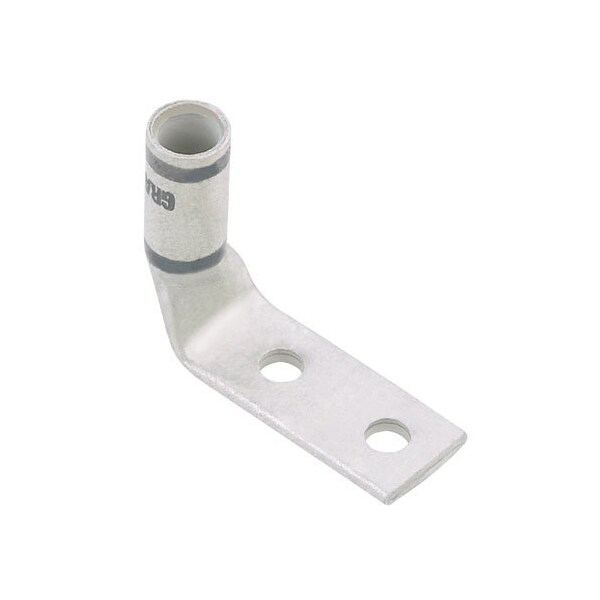

Terminal de compresión de cobre, con 2 agujeros, calibre #6.
| Material | Copper |
|---|---|
| Color Code | Blue |
| Overall Length | 1.78 in |
| Tool Type | Compression Connectors - Lugs |
| Hole Center to Center | 44565 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Type | Compression Connectors - Lugs |
| Tongue Width (mm) | 12.2 |
| Maximum Voltage (kV) | 35 |
| Barrel Length (In.) | 0.48 |
| Tongue Thickness (mm) | 2 |
| Stud Hole Size (In.) | 44,930 |
| Stud Hole Spacing (mm) | 19.1 |
| Tongue Thickness (In.) | 0.08 |
| Overall Length (In.) | 1.78 |
| Burndy Die Index Number | 7 |
| Class K Copper Flex Conductor Size (AWG) | 6 |
| Class I Copper Flex Conductor Size (AWG) | 6 |
| Base Material | Copper |
| Panduit Die Index Number | P24 |
| Finish/Coating | Tin-Plated |
| Barrel Length (mm) | 12.2 |
| Tongue Width (In.) | 0.48 |
| Stud Hole Size (mm) | 6.4 |
| DLO Copper Flex Conductor Size (AWG) | 6 |
| Tongue Angle | 90° |
| Overall Length (mm) | 45.2 |
| Class H Copper Flex Conductor Size (AWG) | 6 |
| Class M Copper Flex Conductor Size (AWG) | 6 |
| UL Temperature Rating (°C) | 90 |
| Class G Copper Flex Conductor Size (AWG) | 6 |
| Copper Code Conductor Size (AWG) | 6 |
| Wire Strip Length (mm) | 14 |
| Tongue Type | Standard |
| Stud Hole Spacing (In.) | 0.75 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
