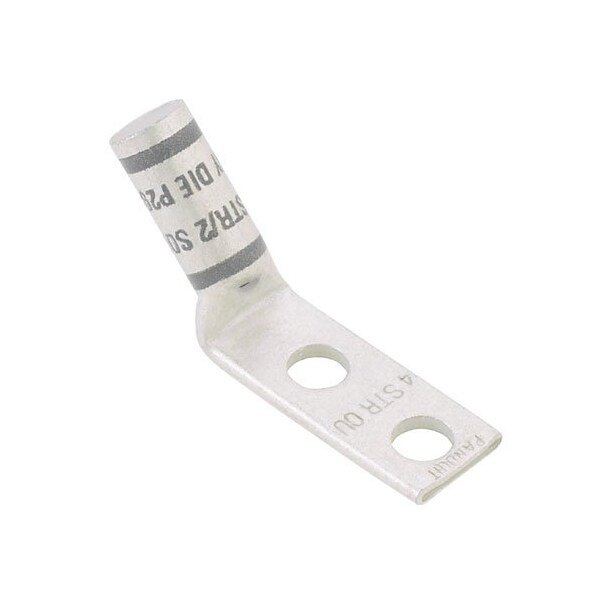

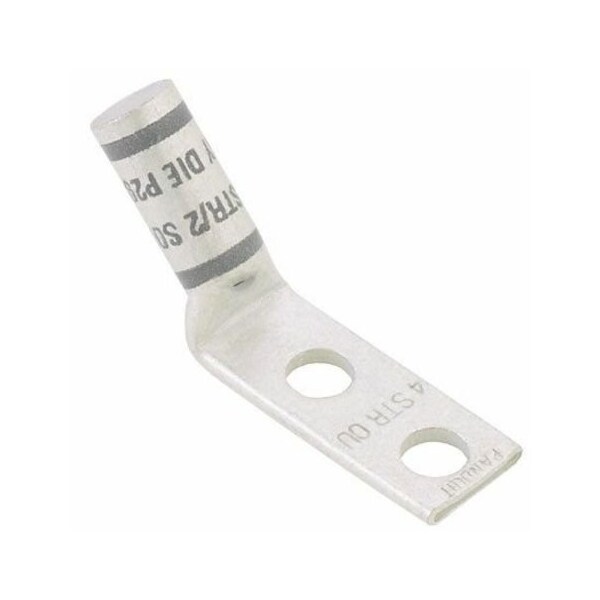

Terminal de compresión de cobre, 2 orificios, calibre #6 AWG.
| Color Code | Blue |
|---|---|
| Overall Length | 2.35 in |
| Features | Corrosion Resistant, 45° Angled Connector |
| Class G Copper Flex Conductor Size (AWG) | 6 |
| Class I Copper Flex Conductor Size (AWG) | 6 |
| Stud Hole Size (In.) | 44,993 |
| Product Type | Compression Connectors - Lugs |
| Wire Strip Length (mm) | 14 |
| Base Material | Copper |
| Class K Copper Flex Conductor Size (AWG) | 6 |
| UL Temperature Rating (°C) | 90 |
| Tongue Type | Standard |
| T & B Die Index Number | 24 |
| Stud Hole Size (mm) | 9.5 |
| Tongue Thickness (In.) | 0.06 |
| Class H Copper Flex Conductor Size (AWG) | 6 |
| Barrel Length (mm) | 12.2 |
| Class M Copper Flex Conductor Size (AWG) | 6 |
| Tongue Width (mm) | 15.7 |
| Wire Strip Length (In.) | 45,185 |
| Stud Hole Spacing (mm) | 25.4 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Maximum Voltage (kV) | 35 |
| DLO Copper Flex Conductor Size (AWG) | 6 |
| Stud Hole Spacing (In.) | 1 |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (AWG) | 6 |
| Tongue Angle | 45° |
| Barrel Length (In.) | 0.48 |
| Overall Length (mm) | 59.7 |
| Panduit Die Index Number | P24 |
| Tongue Width (In.) | 0.62 |
| Tongue Thickness (mm) | 1.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Burndy Die Index Number | 7 |
| Overall Length (In.) | 2.35 |
| Connector Plating | Tin |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
