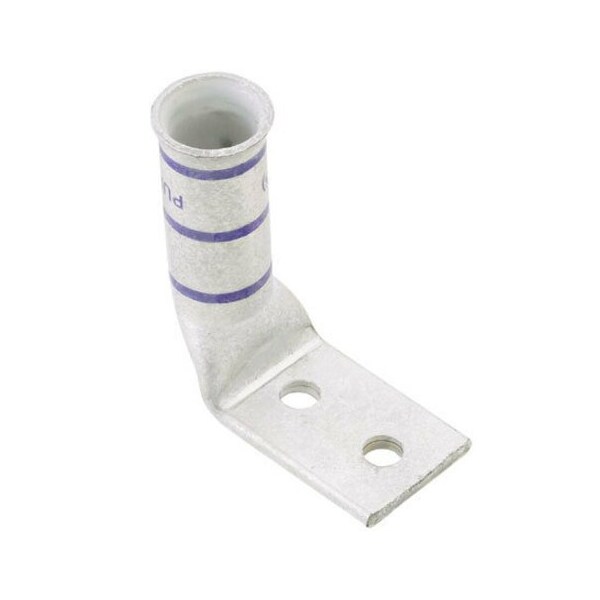

Terminal de compresión de cobre, 2 agujeros, calibre #6 AWG, con barril acampanado.
| Overall Length | 1.69 in |
|---|---|
| Features | Corrosion Resistant, Flared Barrel, 90° Angled Connector |
| Barrel Length (In.) | 1.22 |
| Stud Hole Size (mm) | 6.4 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Barrel Length (mm) | 31 |
| Wire Strip Length (mm) | 33.3 |
| Overall Length (mm) | 42.9 |
| Stud Hole Spacing (mm) | 16 |
| Stud Hole Size (In.) | 44,930 |
| Overall Length (In.) | 1.69 |
| Tongue Width (mm) | 12 |
| Product Type | Compression Connectors - Lugs |
| Stud Hole Spacing (In.) | 0.63 |
| Tongue Width (In.) | 0.48 |
| Wire Strip Length (In.) | 1.31 |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Barrel Type | Long Barrel Length without Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
