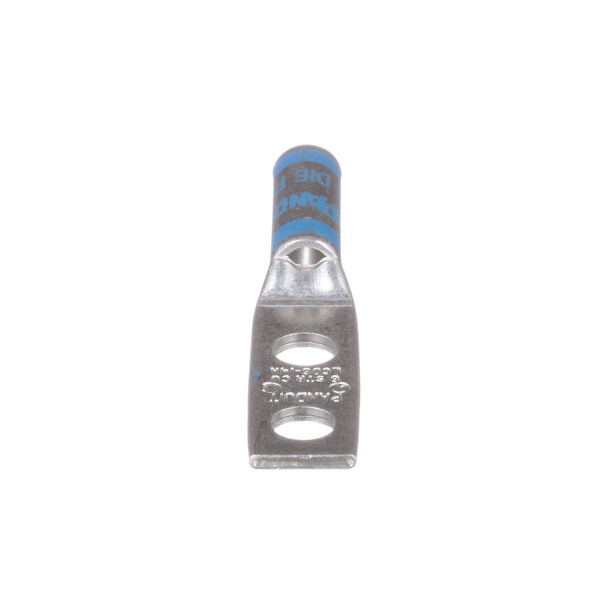

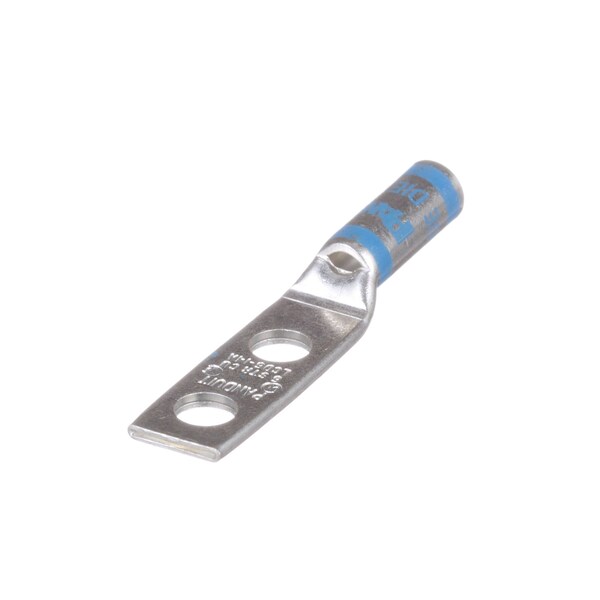

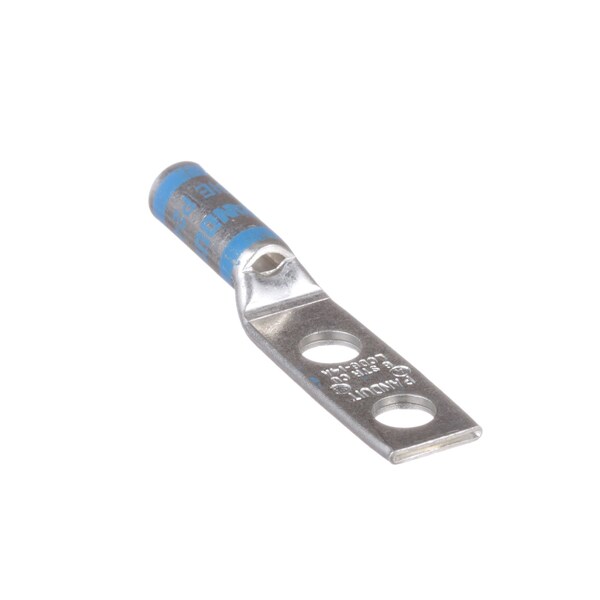

Terminal de compresión de cobre, con dos orificios, calibre #6.
| Color Code | Blue |
|---|---|
| Barrel Length (mm) | 20.6 |
| Tongue Thickness (mm) | 2 |
| Copper Conductor Size (AWG) | 6 |
| Panduit Die Index Number | P25 |
| Tongue Width (mm) | 12.2 |
| Burndy Die Index Number | 7 |
| Tongue Thickness (In.) | 0.08 |
| Stud Hole Size (In.) | 42.826 |
| Wire Strip Length (In.) | 42,954 |
| Barrel Length (In.) | 0.81 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (mm) | 16 |
| Product Type | Copper Compression Connectors - Lugs |
| Overall Length (In.) | 2.24 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Copper Conductor Size (kcmil) | 26.24 |
| Wire Strip Length (mm) | 22.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Overall Length (mm) | 56.9 |
| Package Quantity | 1 |
