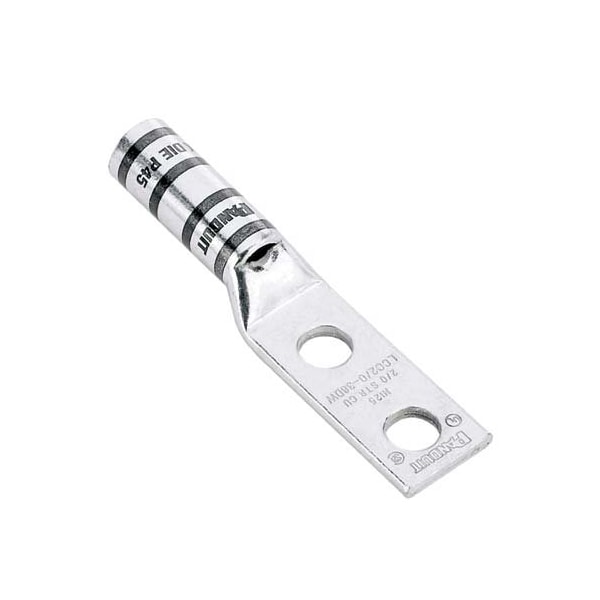

Conector de compresión de cobre, con 2 orificios, 750 Kcmi.
| Material | Copper |
|---|---|
| Color Code | Black |
| Tongue Style | Standard |
| Tool Type | Tin-Plated Copper Compression Connectors - Lugs |
| Overall Length | 5.71 in |
| Tongue Width - Wire Connector | 1.89 |
| Hole Center to Center | 44628 |
| Barrel Length | 2.88 |
| Copper Code Conductor Size (kcmil) | 750 |
| Barrel Length (mm) | 73.2 |
| Wire Strip Length (In.) | 2.94 |
| Overall Length (mm) | 145 |
| Base Material | Copper |
| Tongue Width (In.) | 1.89 |
| Tongue Thickness (In.) | 0.26 |
| Wire Strip Length (mm) | 74.6 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 44,993 |
| Stud Hole Spacing (In.) | 1 |
| Tongue Thickness (mm) | 6.6 |
| Stud Hole Size (mm) | 9.5 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 35 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Panduit Die Index Number | P106 |
| Stud Hole Spacing (mm) | 25.4 |
| Overall Length (In.) | 5.71 |
| Product Type | Copper Compression Connectors - Lugs |
| Barrel Length (In.) | 2.88 |
| Burndy Die Index Number | 24 |
| Tongue Type | Standard |
| Tongue Width (mm) | 48 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
