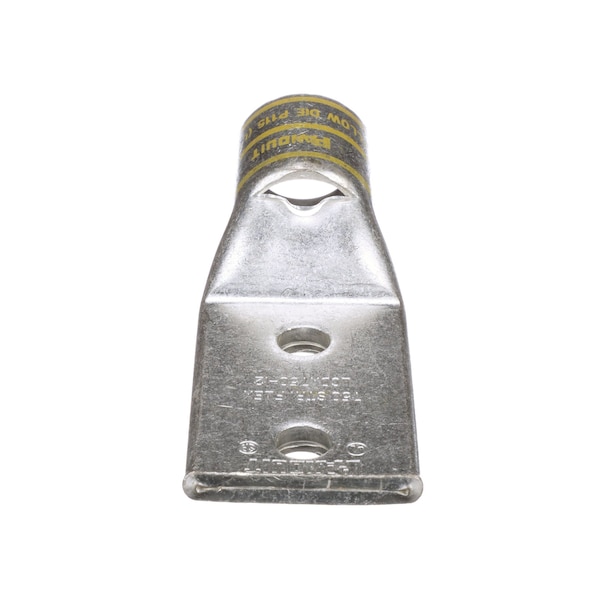

Ojal de compresión de cobre, de 2 agujeros, 777.7 Kc.
| Material | Copper |
|---|---|
| Color Code | Yellow |
| Overall Length | 5.56 in |
| Hole Center to Center | 44563 |
| Tongue Style | Standard |
| Standards | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Barrel Length | 1.66 |
| Tool Type | Compression Connectors - Lugs |
| Tongue Width - Wire Connector | 2.17 |
| Wire Strip Length (mm) | 45 |
| Maximum Voltage (kV) | 35 |
| Overall Length (mm) | 141.2 |
| T & B Die Index Number | 115H |
| Tongue Thickness (mm) | 8.1 |
| Tongue Width (In.) | 2.17 |
| Base Material | Copper |
| Tongue Angle | Straight |
| DLO Copper Flex Conductor Size (kcmil) | 777.7 |
| Wire Strip Length (In.) | 1.75 |
| Barrel Length (In.) | 1.66 |
| Panduit Die Index Number | P115 |
| Stud Hole Size (In.) | 1 to 2 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Burndy Die Index Number | L115 |
| Barrel Length (mm) | 42.2 |
| Stud Hole Size (mm) | 12.7 |
| Tongue Width (mm) | 55.1 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.32 |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Overall Length (In.) | 5.56 |
| Finish/Coating | Tin-Plated |
| Stud Hole Spacing (In.) | 1.75 |
| Product Type | Compression Connectors - Lugs |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Spacing (mm) | 44.5 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
