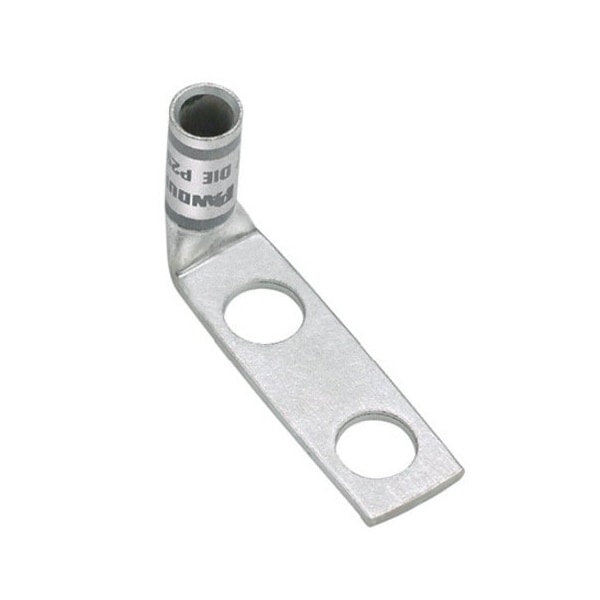

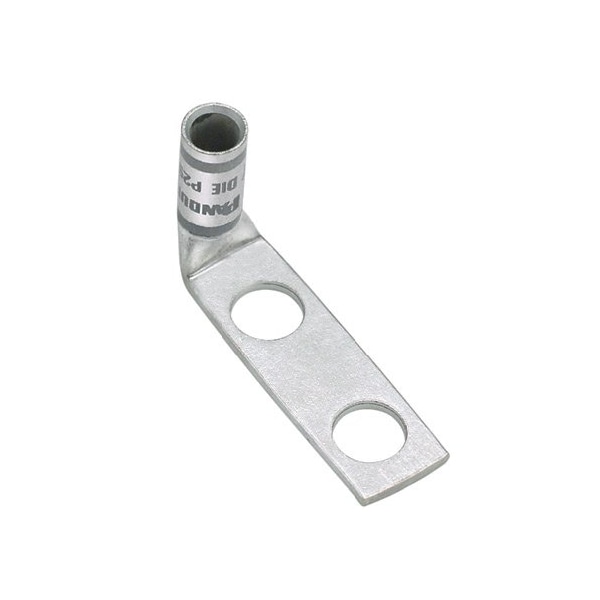

Conector de compresión de cobre, 2 orificios, calibre #8, espárrago de 1/4 (6.4mm), LCD8-14BF-L.
| Length | 1.7 in |
|---|---|
| Color Code | Red |
| Overall Length | 1.74 in |
| Features | 90° Angled Connector, Corrosion Resistant |
| Barrel Length (In.) | 0.56 |
| Product Type | Copper Compression Connectors - Lugs |
| Burndy Die Index Number | 49 |
| Tongue Width (mm) | 12.2 |
| Stud Hole Size (mm) | 6.4 |
| UL Temperature Rating (°C) | 90 |
| Finish/Coating | Tin-Plated |
| Wire Strip Length (mm) | 15.9 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Type | Standard |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Copper Code Conductor Size (AWG) | 8 |
| Stud Hole Spacing (mm) | 19.1 |
| Overall Length (mm) | 44.2 |
| Base Material | Copper |
| Overall Length (In.) | 1.74 |
| Maximum Voltage (kV) | 35 |
| Tongue Width (In.) | 0.48 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Size (In.) | 44,930 |
| Barrel Length (mm) | 14.2 |
| Panduit Die Index Number | P21 |
| Tongue Thickness (mm) | 1.8 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
